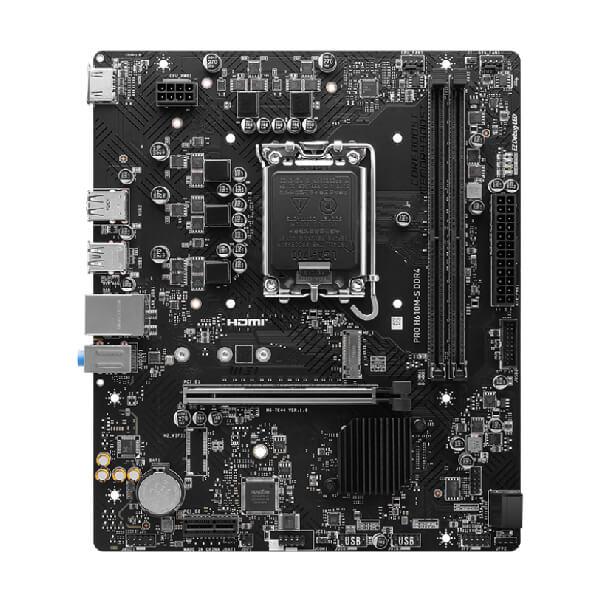

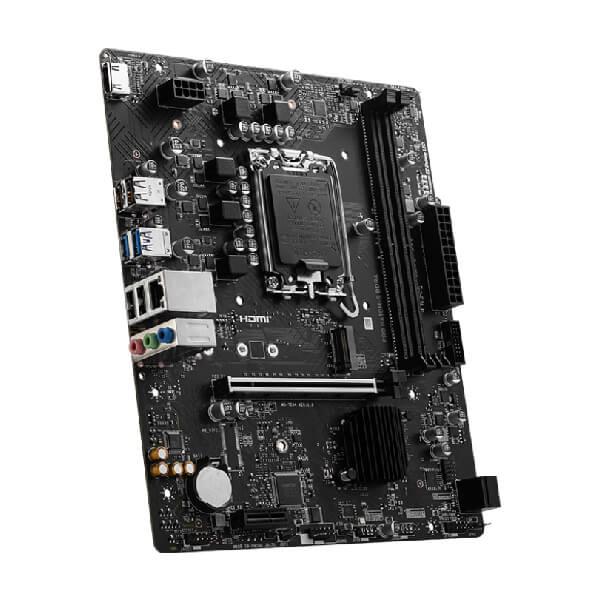

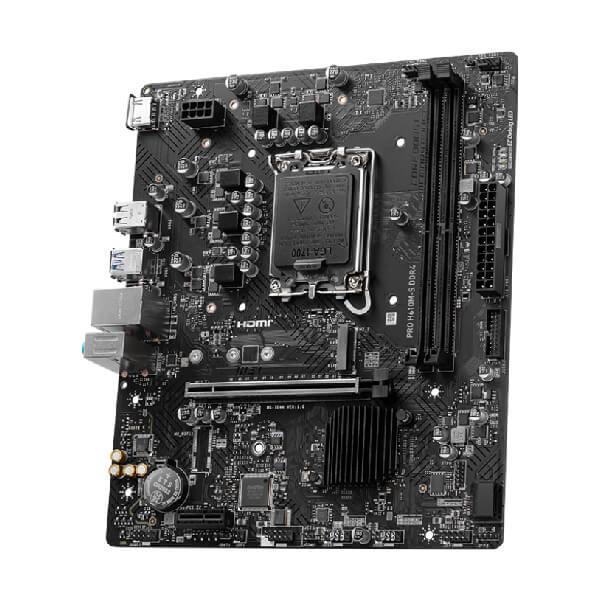

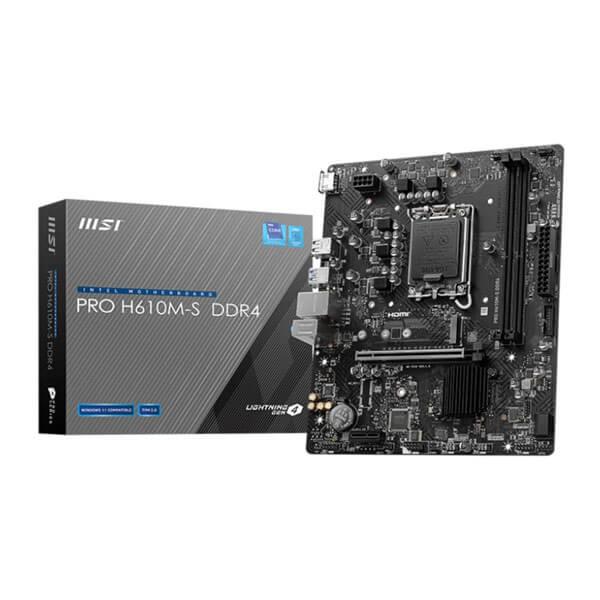

MSI Pro H610M-S DDR4 Motherboard

By MSI
₹ 5,499
Tax included Shipping calculated at checkout.

Specifications

MSI PRO H610M-S DDR4 is a micro-ATX motherboard for Intel Core 14th/13th/12th Gen Processors for LGA1700 Socket with Lightning Gen4, 2x DDR4 Memory Slots, 1x M.2 and 2x SATA 6G Slots

Features:

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

Model PRO H610M-S DDR4
Chipset INTEL H610
CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Onboard Graphics
  • 1x HDMI
  • Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 1x M.2
  • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
  • 2x SATA 6G
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN Realtek RTL8111H Gigabit LAN
Audio
  • Realtek ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • HDMI
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 2.0
  • LAN port
  • Audio Connectors
  • USB 2.0
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info mATX
200mmx236.16mm
Warranty 3 Years
Note

*** Image use for reference only

*** Features, Price, Specifications are subject to change without notice.


Additional Information

SKU:

Model Number: PRO-H610M-S-DDR4
