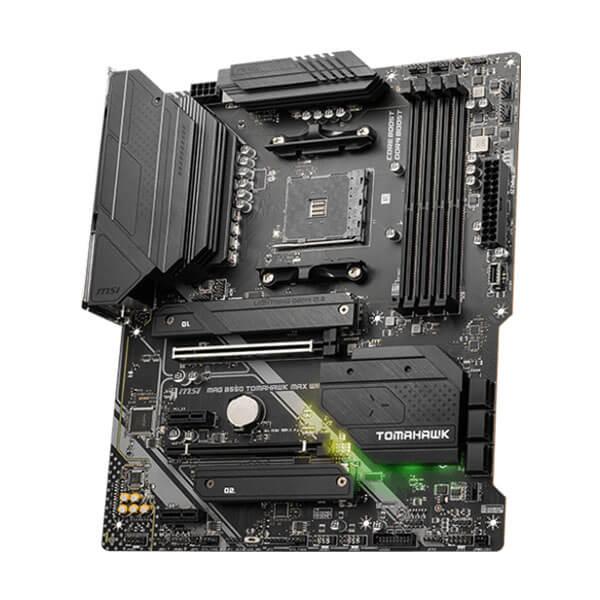

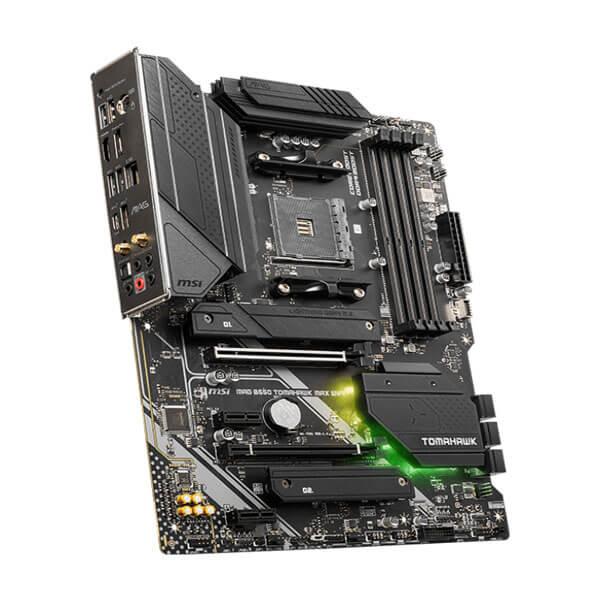

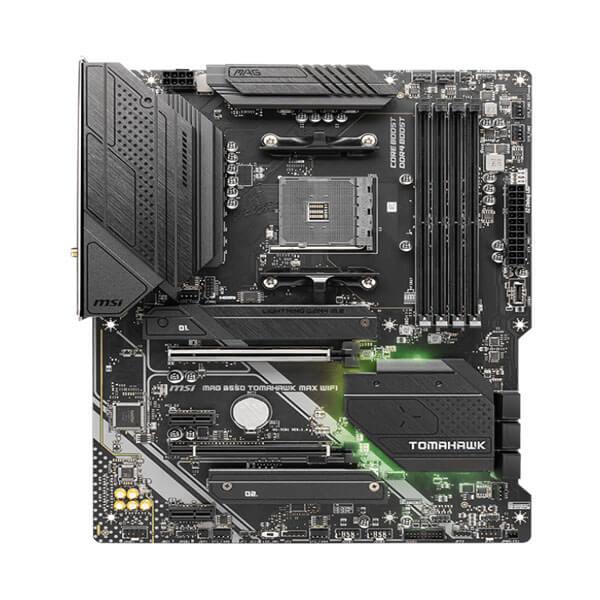

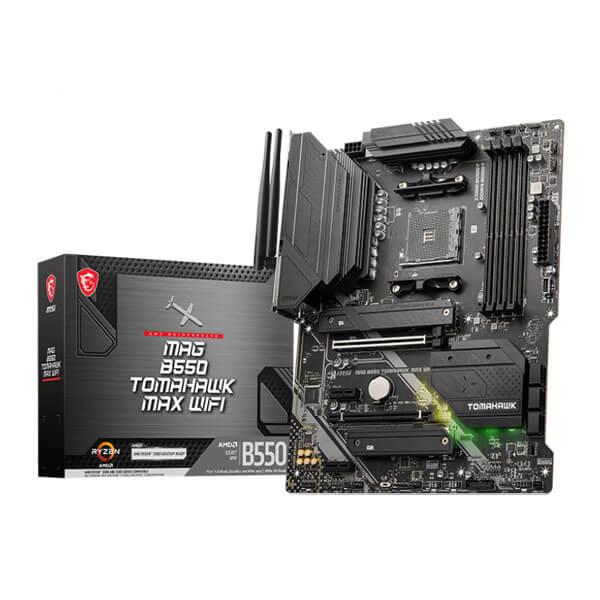

MSI MAG B550 Tomahawk MAX WIFI Motherboard

By MSI
₹17,655
Tax included Shipping calculated at checkout.

Specifications

MAG B550 TOMAHAWK MAX WIFI Motherboard Supports AMD Ryzen 5000 Series processors, DDR4 Memory, up to 5100+(OC) MHz, PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr

Features:

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire

Specification:

Model MAG B550 TOMAHAWK MAX WIFI
Processor Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset AMD B550 Chipset
Memory 4 x DDR4 memory slots, support up to 128GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 5100 MHZ
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory
Supports un-buffered memory
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2x PCIe 3.0 x1 slots
Multi-GPU

Supports AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
  • Support HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 16 GB
Storage

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output
Wireless Lan & Bluetooth
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz  (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2, FIPS, FISMA
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

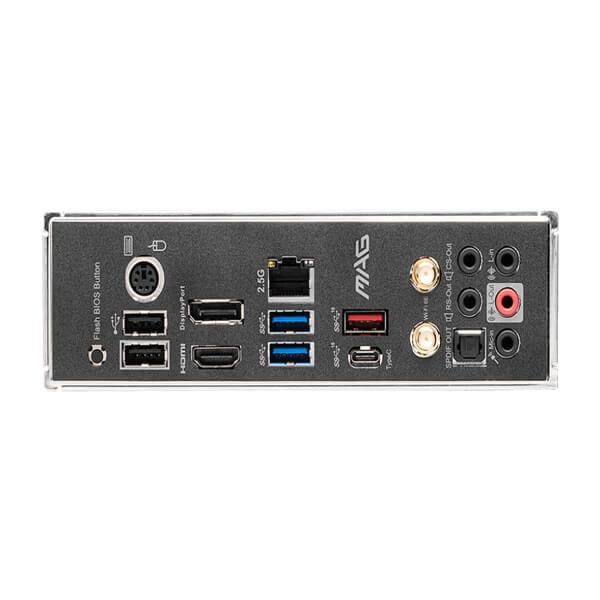

Back panel ports
  • Keyboard / Mouse
  • DisplayPort 1.4
  • 2.5G LAN Port
  • USB 3.2 Gen 2 10Gbps Type-A
  • Wi-Fi / Bluetooth Antenna
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Port
  • HDMI 2.1 Port
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-C
  • Optical S/PDIF OUT
Dimensions ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
