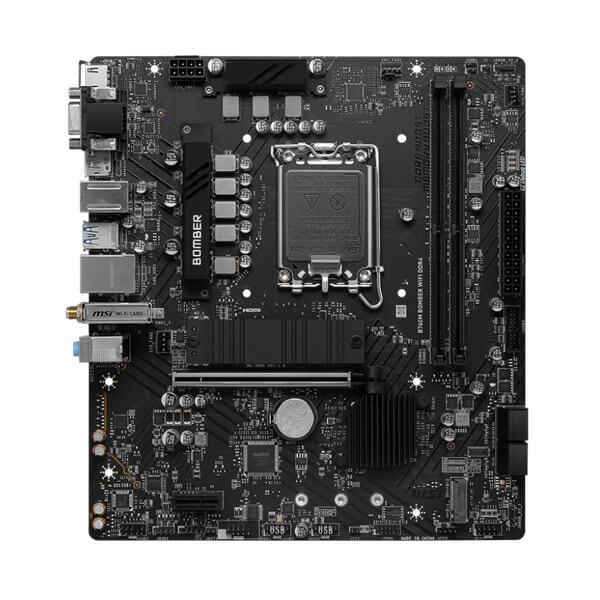

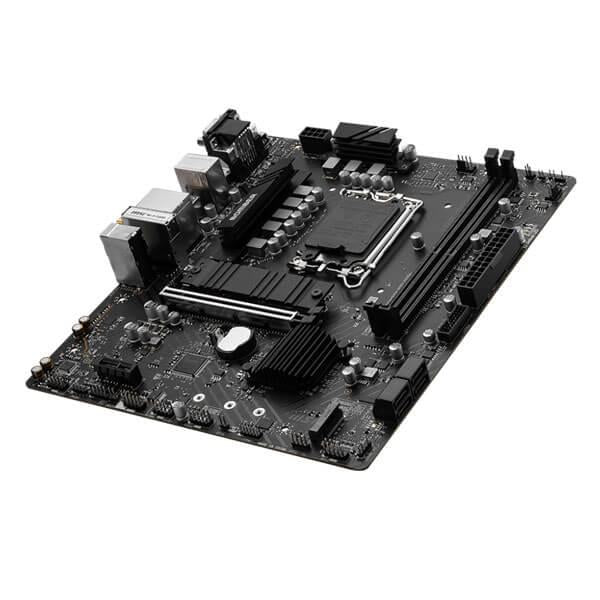

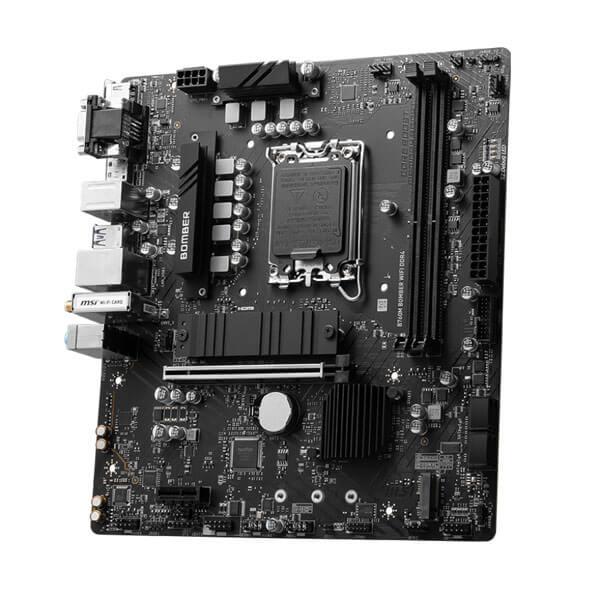

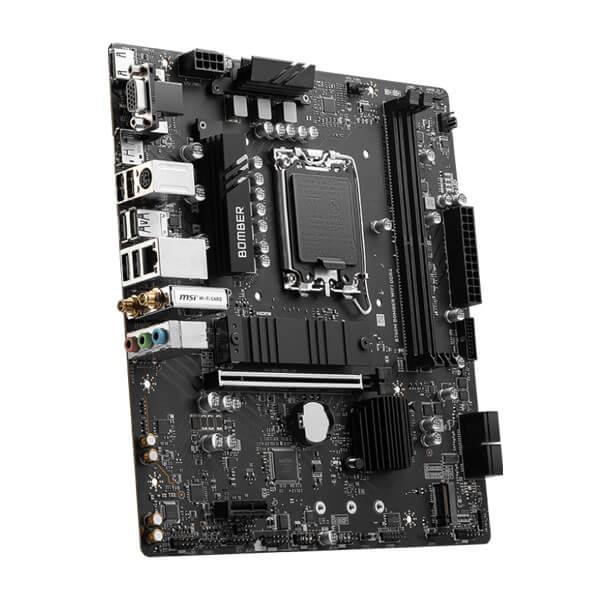

MSI B760M Bomber WIFI DDR4 Motherboard
₹11,660
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
MSI B760M Bomber WIFI DDR4 Motherboard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
MSI B760M Bomber WIFI DDR4 Motherboard Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket. Supports DDR4 Memory, Dual Channel DDR4-4800+MHz (OC)
Features:
B760M BOMBER WIFI DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4-4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications:
| Model Number | B760M-BOMBER-WIFI-DDR4 |
| CHIPSET | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB 2x DDR4, Maximum Memory Capacity 64GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 4800+ MHz• 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel modeSupports Dnon-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| AUDIO | Realtek® ALC897 Codec Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| STORAGE | 2x M.2 (Qty) 2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G (Qty) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| SLOT | 1x PCI-E x16 slot (Qty) 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

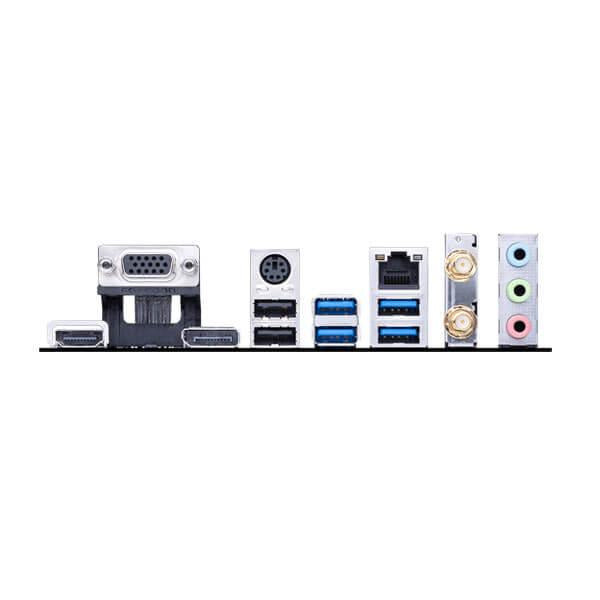

| BACK PANEL PORTS | HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 220mmx243.84mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Additional Information
Additional Information
SKU:
Model Number: B760M-BOMBER-WIFI-DDR4
