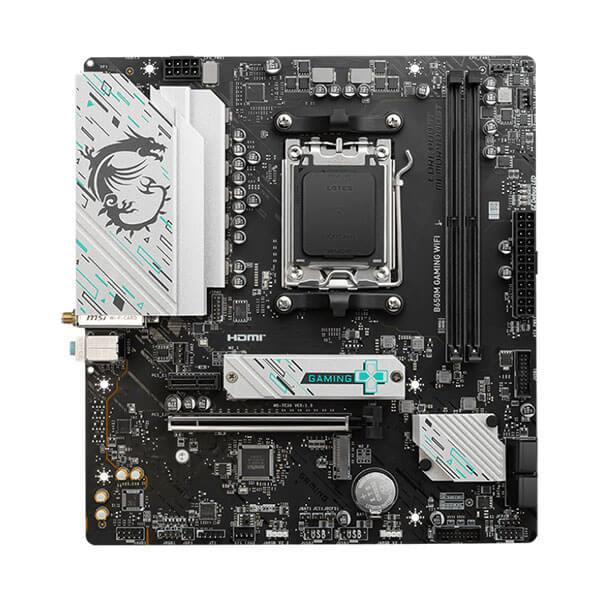

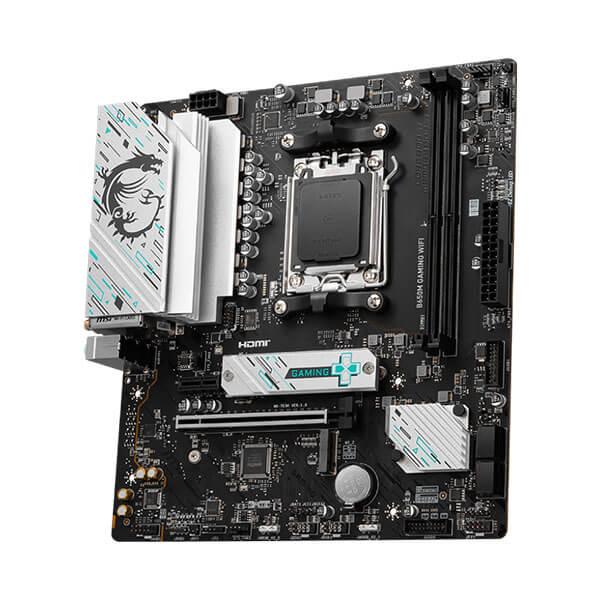

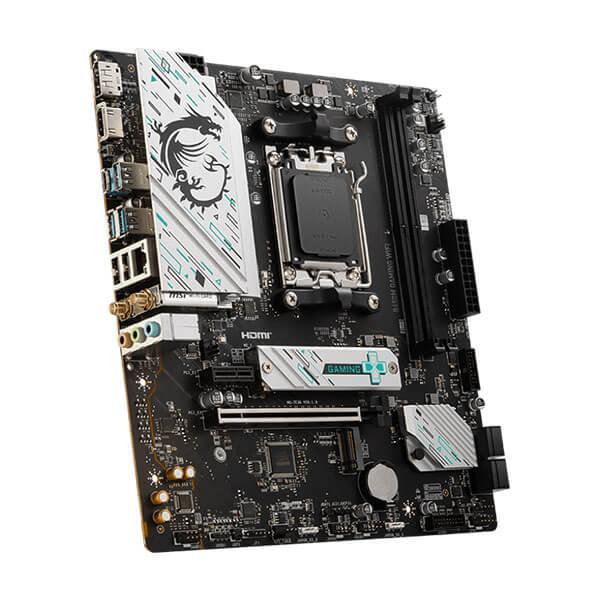

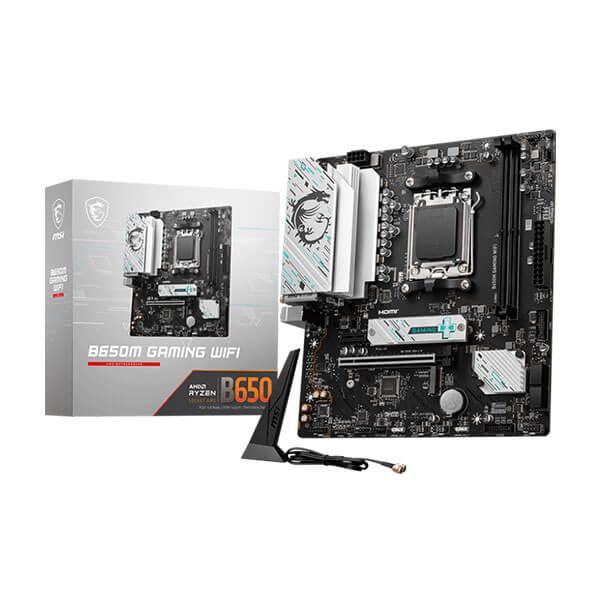

MSI B650M Gaming WIFI DDR5 Motherboard

2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x Front Type-C Quick Charge Connector(PD_PWR1)
• 1x CPU Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)

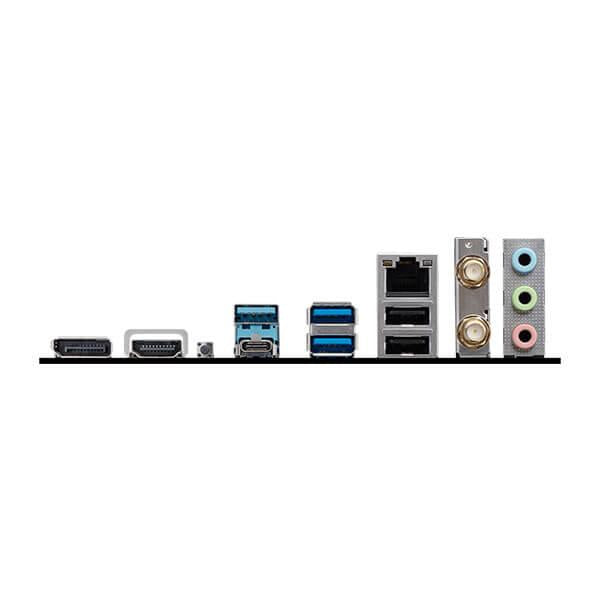

• 4x USB 2.0 ports
• 4x USB 3.2 Gen1 Type A ports

• DisplayPort
• HDMI™
• USB 3.2 Gen 1 5Gbps (Type-A)
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• USB 3.2 Gen 1 5Gbps (Type-C)
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 2.0
