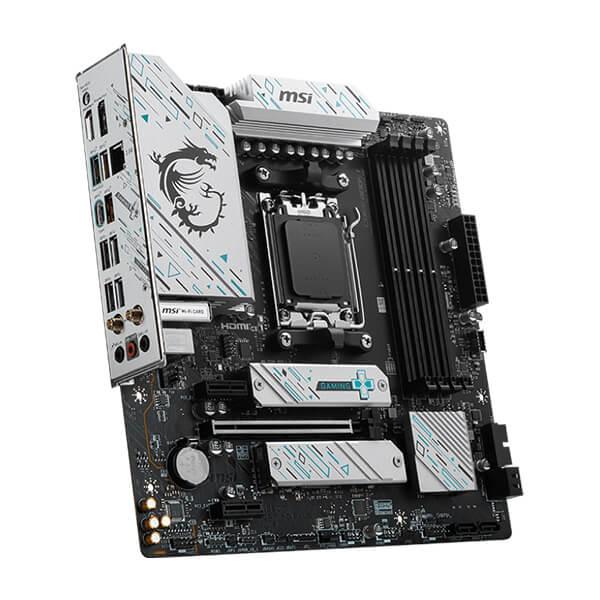

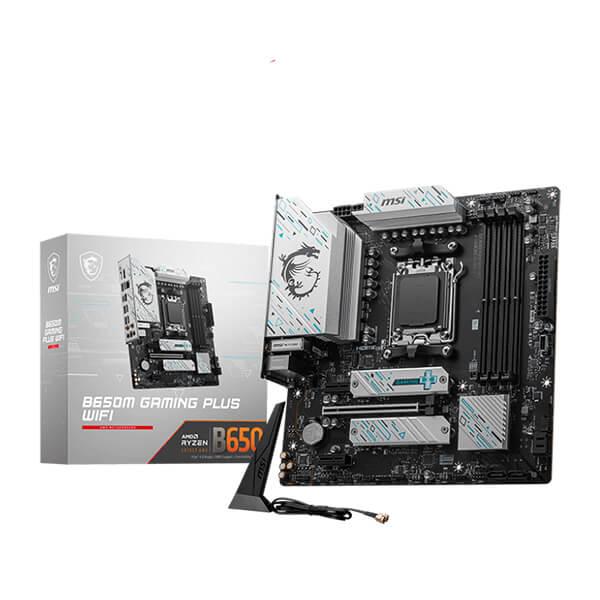

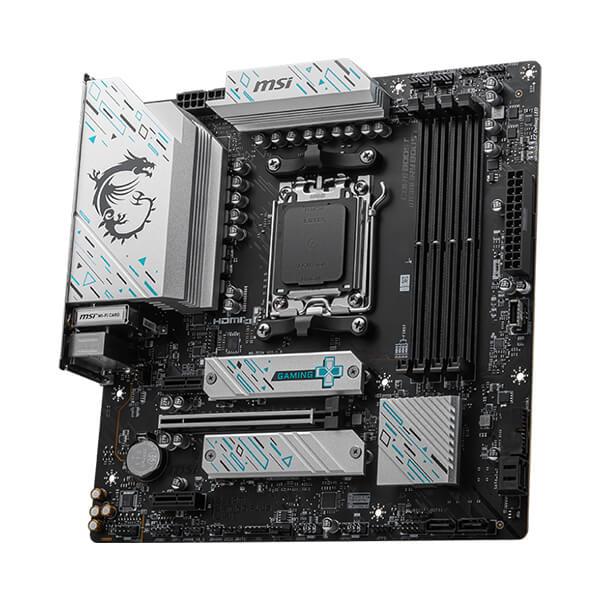

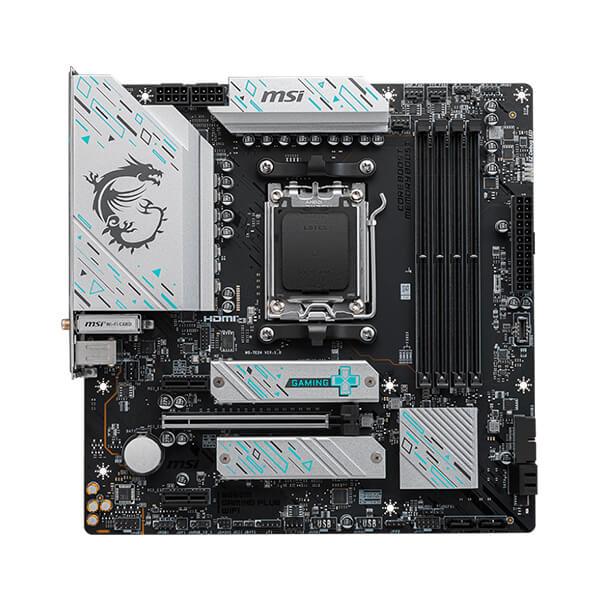

MSI B650M Gaming Plus WIFI DDR5 Motherboard

By MSI
₹15,700
Tax included Shipping calculated at checkout.

Specifications

MSI B650M Plus Gaming WIFI Micro ATX Motherboard AMD Ryzen 8000 and 7000 Series Processors for AM5 Socket, with 4x DDR5 UDIMM Slot, PCIe 4.0 Slot, Dual 8-pin CPU Power Connectors and AMD Wi-Fi 6E Convenient, This Motherboard Perfect for Your Gaming Setup

Features:

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper

Specification:

Model B650M GAMING PLUS WIFI
Chipset AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics
  • 1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

  • 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 7000 Series processors)
  • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4 (For Ryzen™ 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
  • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

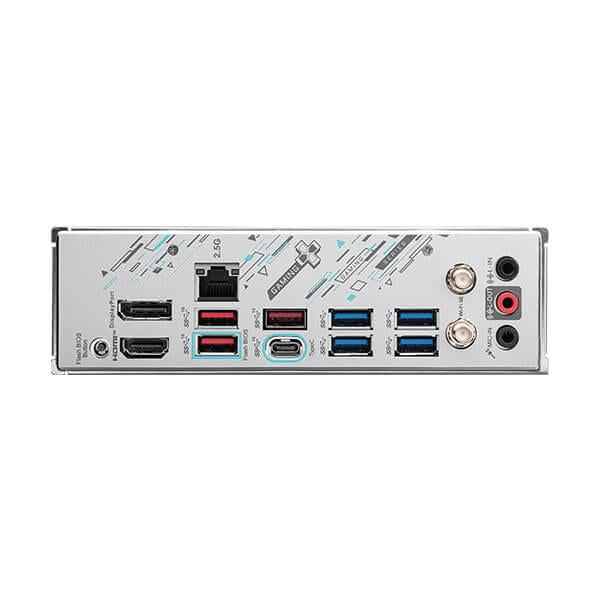

BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Audio connectors
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info mATX
243.84mmx243.84mm
Warranty 3 Years
Note

*** Image use for reference only

*** Features, Price, Specifications are subject to change without notice.

Additional Information

SKU:

Model Number: B650M-GAMING-PLUS-WIFI
