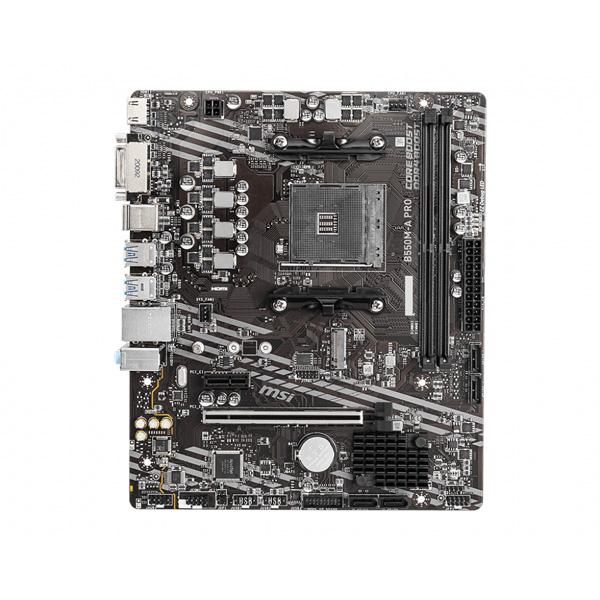

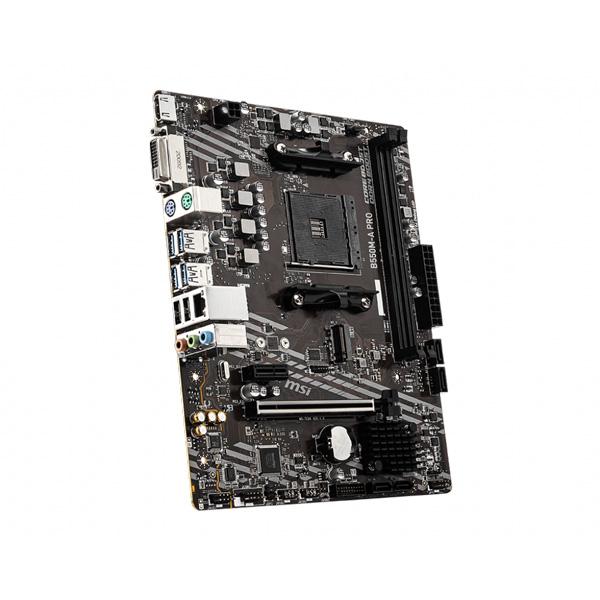

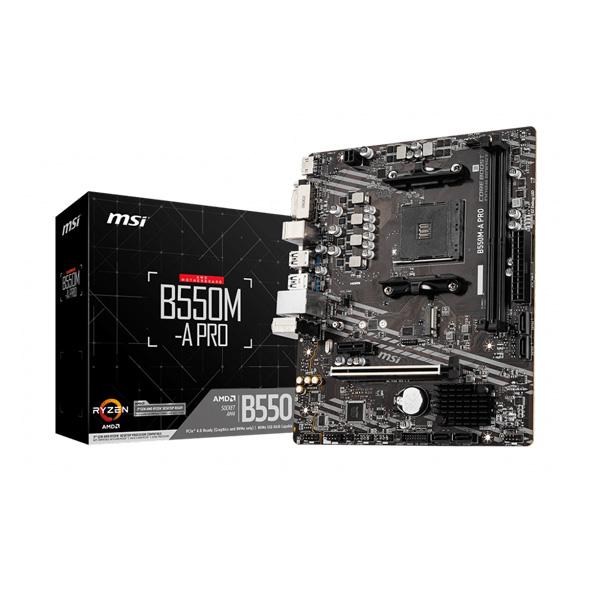

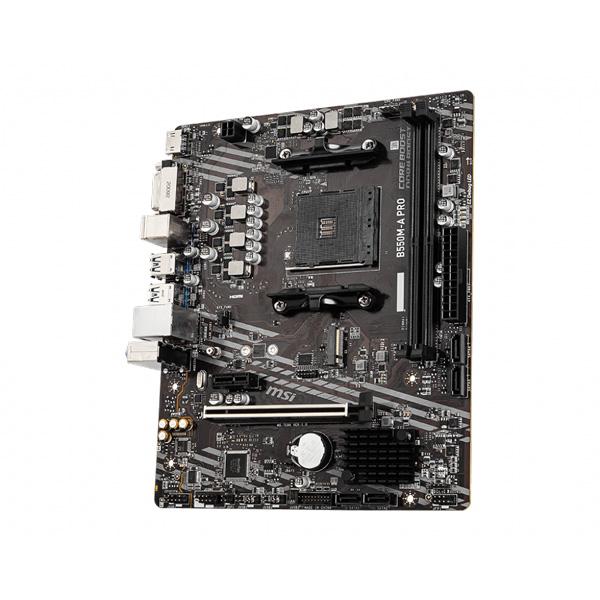

MSI B550M-A Pro Motherboard

By MSI
₹7,450
Tax included Shipping calculated at checkout.

Specifications

AMD B550 (Ryzen AM4) micro-ATX motherboard with M.2 support, MSI B550M-A PRO is equipped with DDR4 4600MHz, M.2 Slot, USB 3.2 Gen 1 ports Type C, SATA 6 Gbps

Features:

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Specifications:

Model B550M-A PRO
CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset

AMD B550 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 4600 MHz
  • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 3.0 x1 slot
  • 1x PCIe 4.0/3.0 x16 slot
Onboard Graphics
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
    Support HDCP 1.4 & 2.3
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • Maximum shared memory of 16 GB



  • Available for the processor with integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.
Storage

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
  • Supports PCIe 4.0/ 3.0
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio

Realtek ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN 1x Realtek RTL8111H Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper

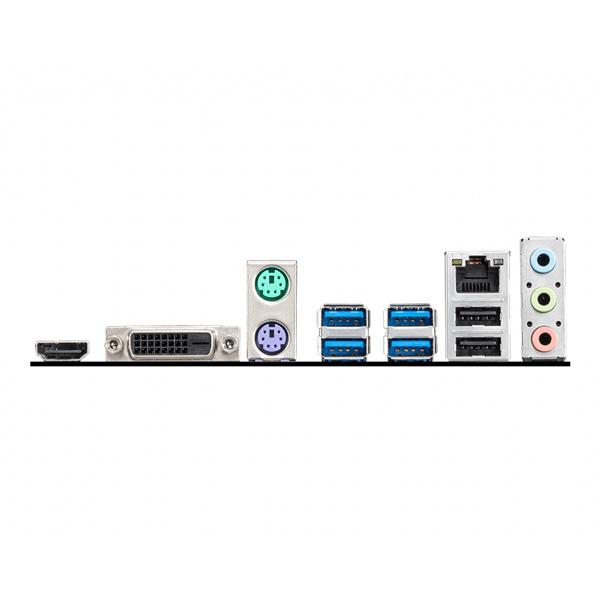

Back panel ports
  • LAN port
  • HDMI
  • DVI-D
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps
  • Type-A
  • USB 3.2 Gen 1 5Gbps
  • Type-A
  • USB 2.0 Ports
  • Audio Connectors
Dimensions

Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING

8 mounting holes
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.

Additional Information

SKU:

Model Number: B550M-A-PRO

Delivery and Shipping

Order wil be delivered in 5-7 days
