- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Automatic overclocking software by AI models.
AI Perfdrive
Provides optimal and customized BIOS preset profile for user.
Premium Compatibility
Four DDR5 slots with XMP memory module support.
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus
PCIe and M.2 slots with quick release and screwless design.
EZ-Latch Click
M.2 heat sinks with screwless design.
Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup.
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Power Monitor
New Power Monitor in HWinfo for real time monitoring on CPU power phases.
Fast Storage
Three M.2 slots, including one PCIe 5.0 x4 slot.
Efficient Thermals
VRM Thermal Armor Advanced and M.2 Thermal Guard.
Fast Networking
2.5GbE LAN & Wi-Fi 7 (802.11be) with directional ultra-high gain antenna.
Extended Connectivity
USB4 with DP-Alt mode via USB-C.
Gigabyte Z890M AORUS ELITE WIFI7 Ultra Durable PCIe Armor
The metal back plate of PCIe x16 slot delivers enhanced durability.
Gigabyte Z890M AORUS ELITE WIFI7 PCIe UD Slot X
PCIe 5.0 x16 slot with 10x greater strength for graphics cards.
CPU
| Chipset |
Intel Z890
|
| CPU Socket |
LGA 1851
|

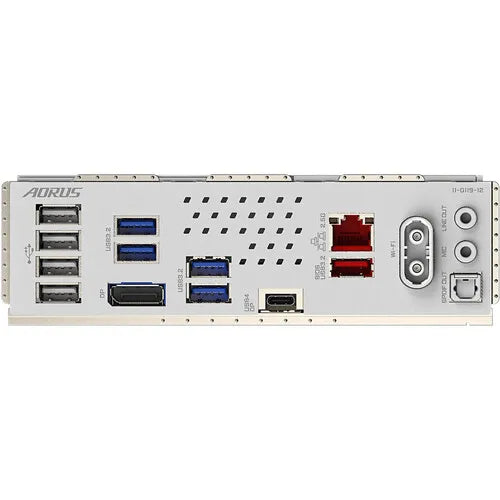

Back Panel I/O
| USB |
1x USB-C (USB4) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
|
| Thunderbolt |
No
|
| Display |
1x DisplayPort 2.1
|
| Audio |
2x 1/8" / 3.5 mm 1x S/PDIF
|
| Ethernet / Controller |
1x Realtek RTL8125 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280, 2580 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280, 2580 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
|
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode)
|
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
|
| Air Cooling |
1x 4-Pin CPU 3x 4-Pin System
|
| Liquid Cooling |
2x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard 2x 8-Pin ATX
|
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Audio |
No
|
| Diagnostics |
Clear CMOS, Reset
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.1/3.2 Gen 2, HDMI
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.4
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 24.4 x 24.4 cm
|
