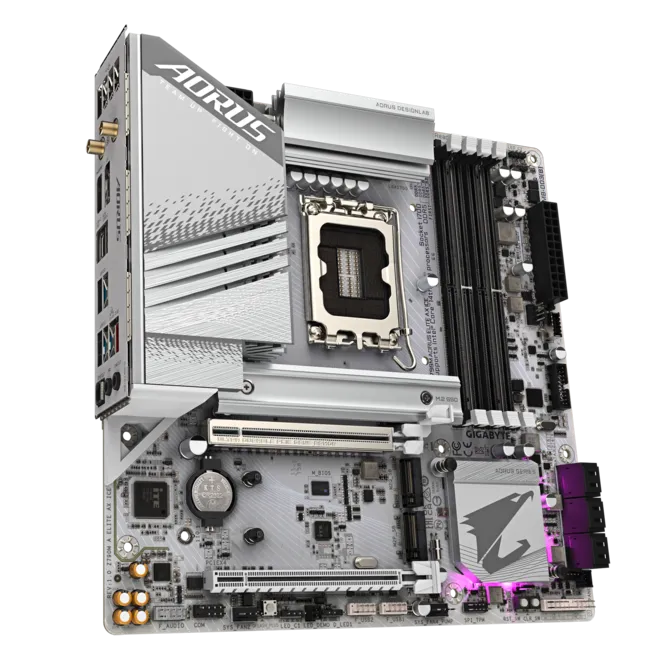

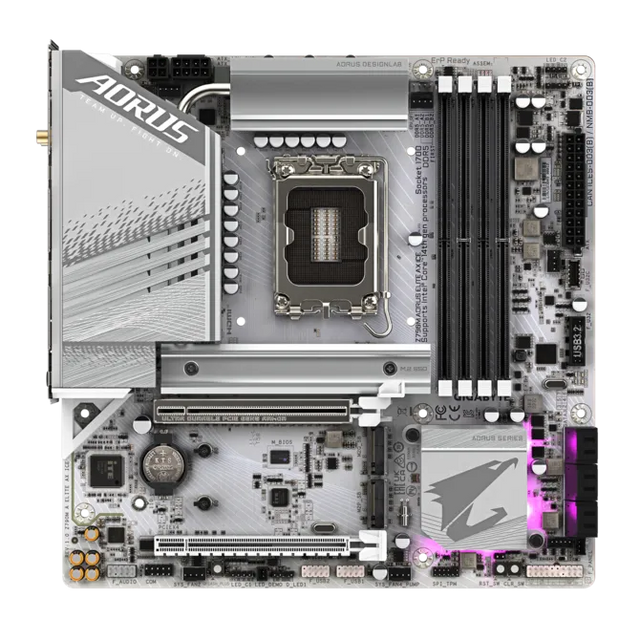

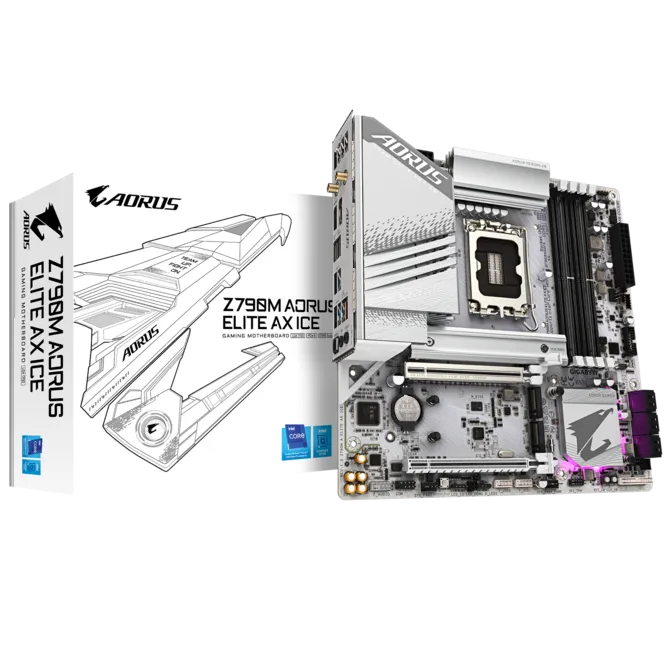

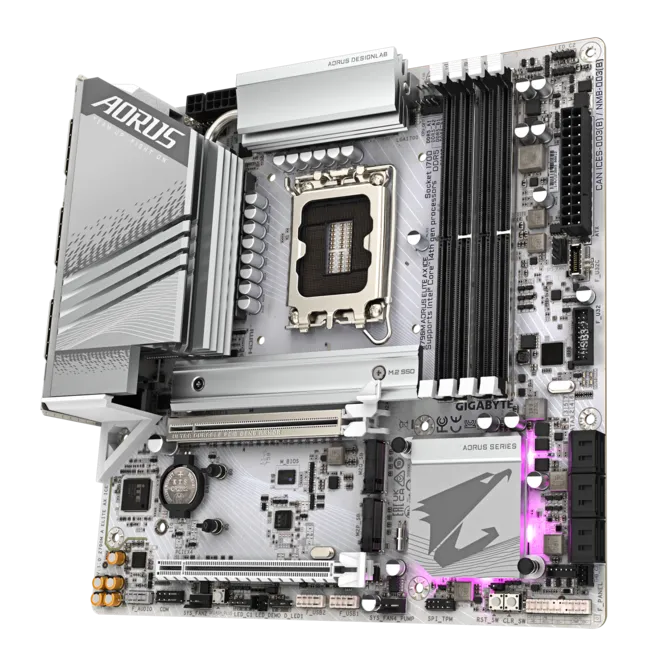

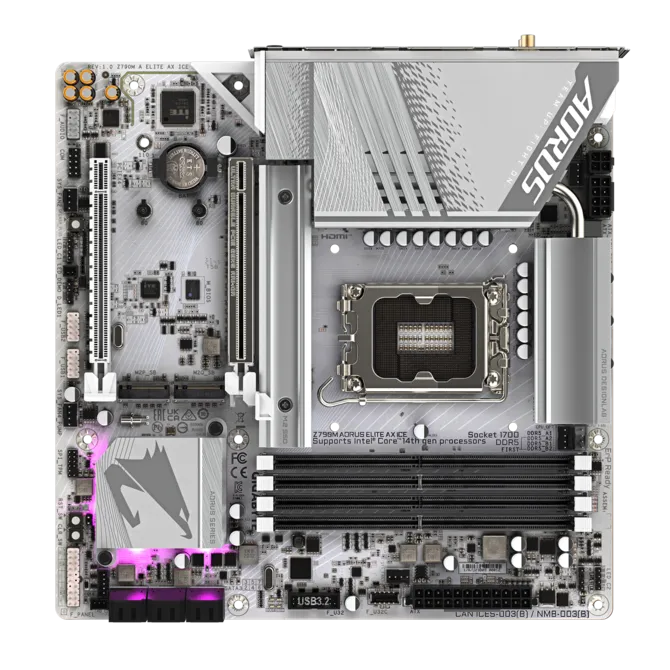

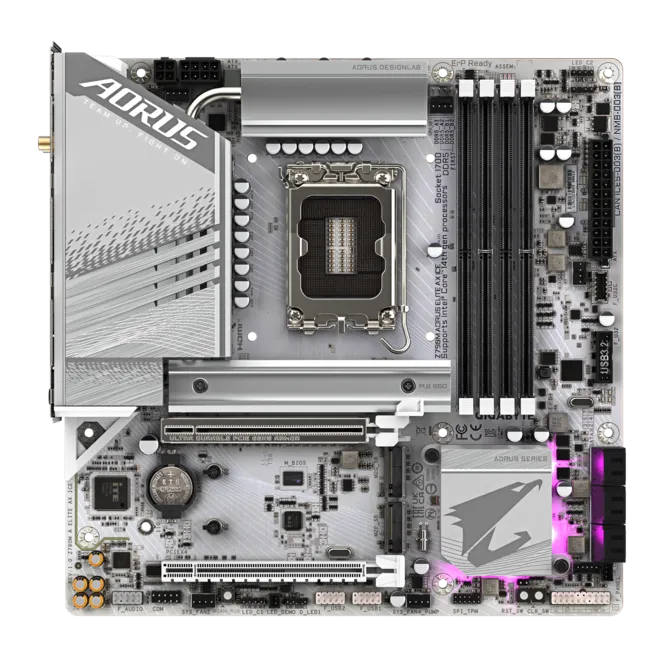

Gigabyte Z790M Aorus Elite AX ICE DDR5 Motherboard Supports Intel 12th, 13th & 14th Gen Processors
₹ 21,190
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Gigabyte Z790M Aorus Elite AX ICE DDR5 Motherboard Supports Intel 12th, 13th & 14th Gen Processors is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Specifications
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | Z790M AORUS ELITE AX ICE |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Additional RAID Controller | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | BLUETOOTH 5.3 |

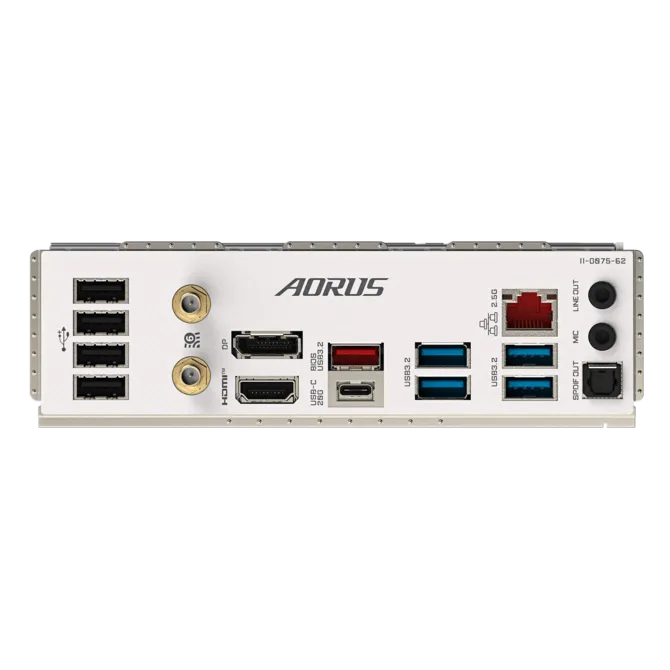

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
| Features | Support for GIGABYTE Control Center Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|---|
Additional Information
Additional Information
SKU:
Model Number: Z790M Aorus Elite AX ICE
