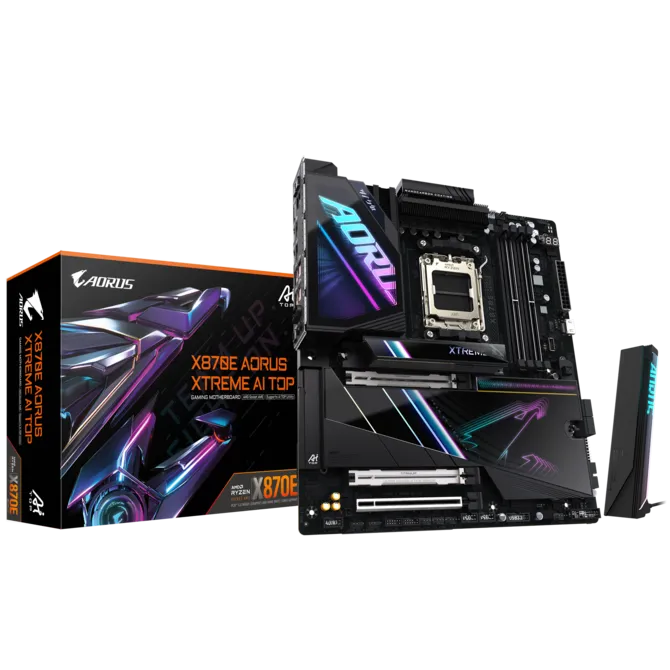

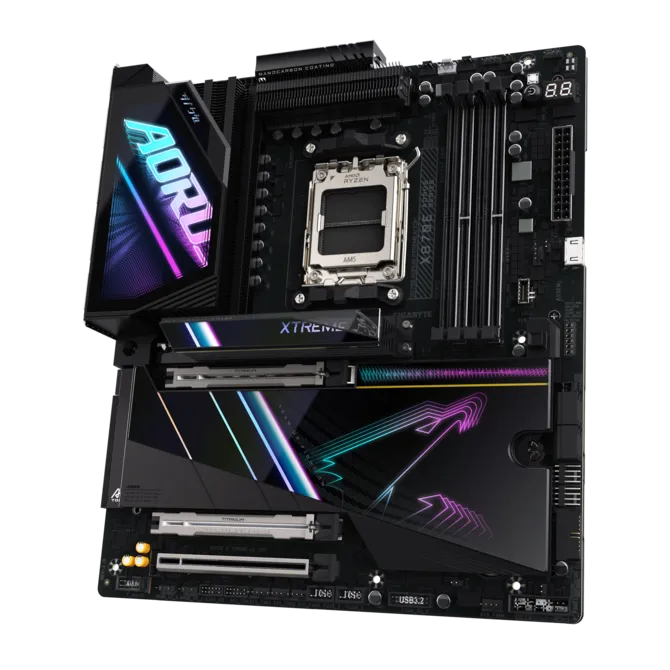

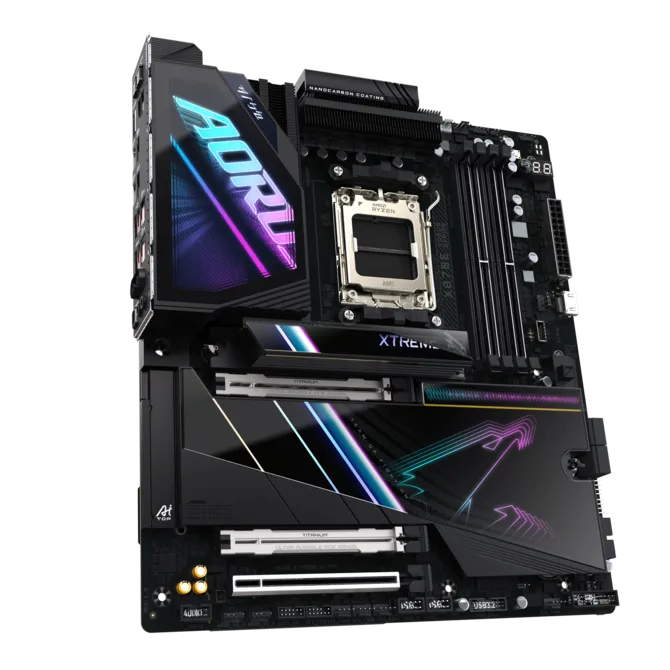

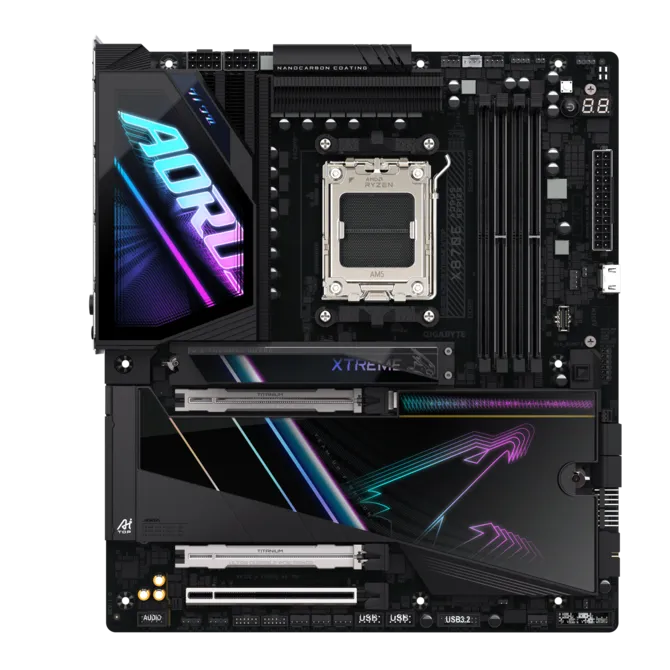

Gigabyte X870E Aorus Xtreme AI Top WIFI E-ATX Motherboard

Name: Gigabyte X870E Aorus Xtreme AI Top WIFI E-ATX Motherboard
Brand: Novelty Computech
Price: 90990.00 INR
Availability: InStock

By Gigabyte

₹ 90,990

Tax included Shipping calculated at checkout.

Description

Features:

DDR5 OC up to 8800MT/s
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
DDR Wind Blade: Enhanced Active Cooling for Memory Modules
M.2 EZ-Match: Magnetic alignment for easy installation of large heatsinks
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 / 4.0
Efficient Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL

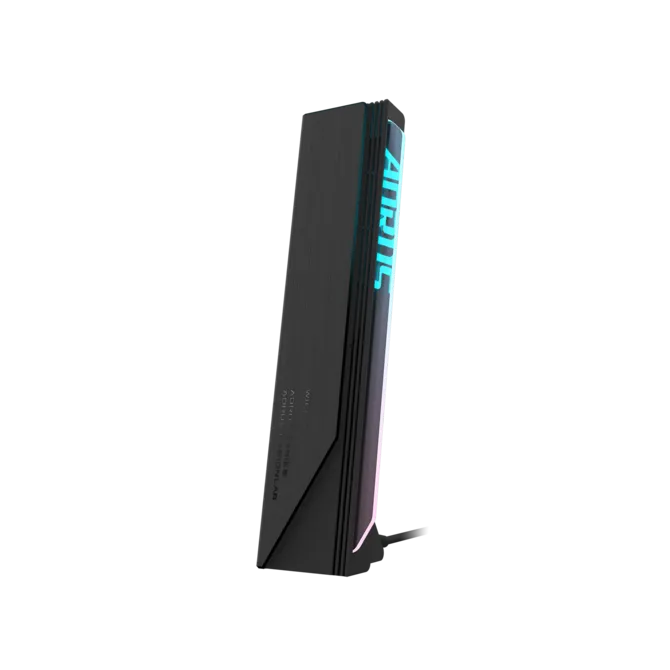

Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with ARGB
Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Titanium PCIe UD Slot X: PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards

Chipset	AMD X870E
CPU Socket	AM5

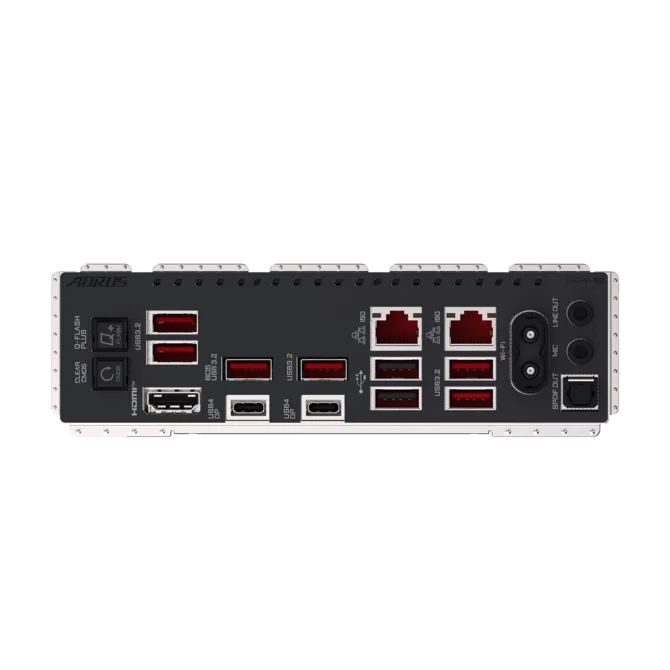

Back Panel I/O

USB	2x USB-C (USB4) 6x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	2x Marvell AQtion AQC113C 10GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x2 mode)
USB	1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	5x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Audio	No
Diagnostics	Clear CMOS, Power, Reset, Voltage Regulation

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC1220 (5.1-Channel)
DAC	ESS ES9118

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	5.3

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	E-ATX
Dimensions	12.0 x 10.6" / 30.5 x 26.9 cm

SKU:

Model Number: X870E Aorus Xtreme AI Top WIFI

Order wil be delivered in 5-7 days
