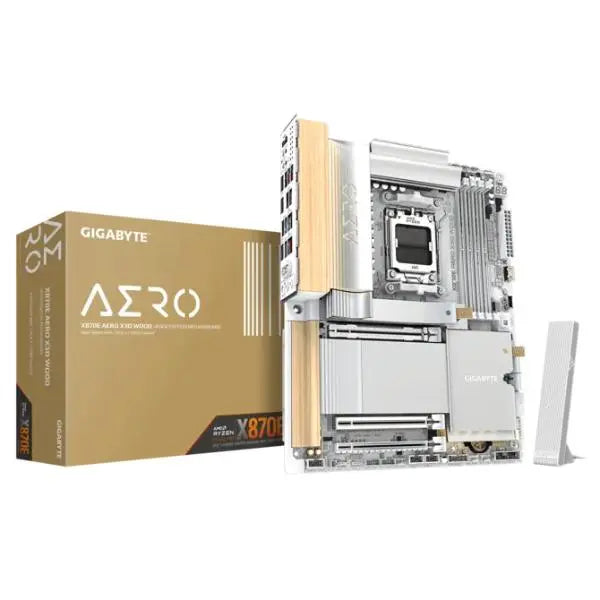

Gigabyte X870E AERO X3D WOOD Motherboard
₹ 41,590
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Gigabyte X870E AERO X3D WOOD Motherboard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Specifications
Specifications
| Category | Specification |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series (check GIGABYTE CPU support list for latest) |
| Chipset | AMD X870E |
| Memory | 4 × DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM max) Dual channel architecture Supports DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s AMD EXPO™ and Intel XMP support Non-ECC Un-buffered DIMM support |
| Onboard Graphics | Integrated AMD Radeon™ Graphics (via CPU) + ASMedia USB4® Controller 2 × USB4® Type-C ports (DisplayPort, max 3840×2160@240 Hz) 1 × HDMI 2.1 (max 4096×2160@60 Hz) 1 × Front HDMI (max 1920×1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support DSD audio support on line out |
| LAN | 2 × Realtek® 5GbE LAN chips (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | MediaTek Wi-Fi 7 MT7927 (RZ738) 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, 320 MHz channel Bluetooth 5.4 (Wi-Fi 7 requires Windows 11 SV3; 6 GHz availability varies by country) |
| Expansion Slots | 1 × PCIe 5.0 x16 (PCIEX16) – CPU (PCIe 5.0 x16 on Ryzen 9000/7000, PCIe 4.0 x8/x4 on 8000 series) 1 × PCIe 5.0 x8 (PCIEX8) – CPU (shares with PCIEX16) 1 × PCIe 4.0 x4 (PCIEX4) – Chipset |
| Storage | 4 × M.2 (Socket 3, M key): - M2A_CPU & M2B_CPU: PCIe 5.0 x4/x2 (CPU) - M2C_SB & M2D_SB: PCIe 4.0 x4/x2 (Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
| USB (Rear I/O) | 2 × USB4® Type-C 1 × USB 3.2 Gen 2 Type-C 5 × USB 3.2 Gen 2 Type-A (red) 3 × USB 3.2 Gen 1 2 × RJ-45 (5GbE) |
| USB (Internal Headers) | 1 × USB 3.2 Gen 2x2 Type-C 2 × USB 3.2 Gen 1 2 × USB 2.0/1.1 |
| Internal I/O Connectors | 1 × 24-pin ATX, 2 × 8-pin CPU power Multiple fan/pump headers, RGB/ARGB headers, TPM, Q-Flash Plus, etc. |
| Back Panel I/O | HDMI 2.1, 2 × USB4® Type-C (DP), 1 × USB-C 3.2 Gen 2x2, 5 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1, 2 × 5GbE RJ-45, optical S/PDIF, 2 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control, noise detection |
| BIOS | 256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit support |
| Form Factor | ATX; 30.5 cm × 24.4 cm |
Additional Information
Additional Information
SKU:
Model Number: X870E AERO X3D WOOD
