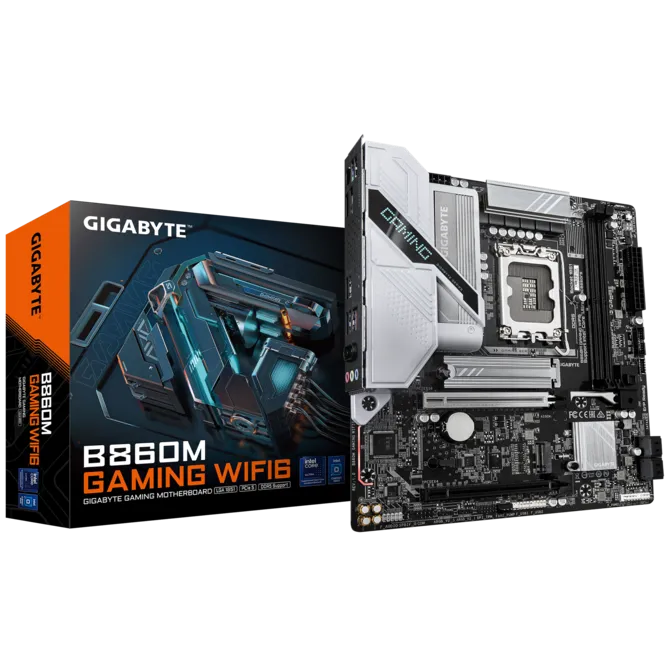

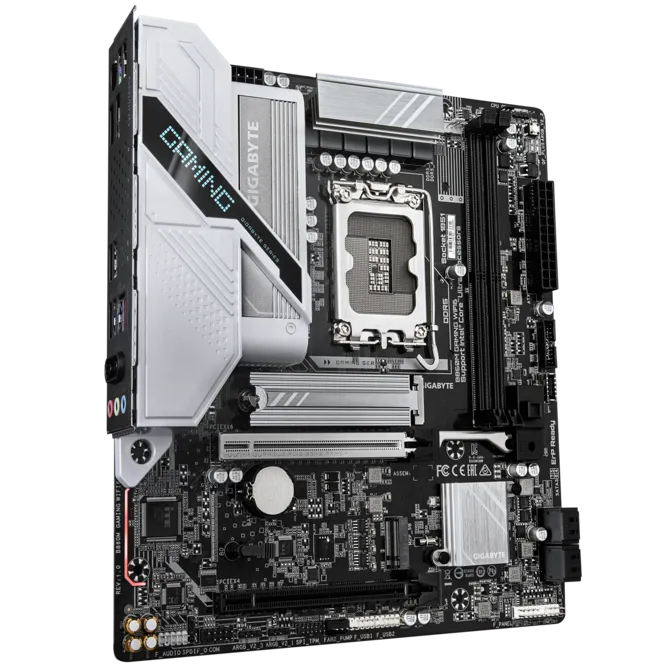

GIGABYTE B860M Gaming WIFI6 M-ATX Motherboard

By Gigabyte
₹ 15,590
Tax included Shipping calculated at checkout.

Description

Features:

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Hybrid 8+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity : HDMI, DisplayPort

Infinite Memory Performance

D5 Bionic Corsa Technology.

Comprehensive Thermal

Keep your system cool and efficient.

Infinite Memory Performance

Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

All-round Connectivity

-Wi-Fi 6
-2.5 GbE LAN

Born from Ultra Durable

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Specifications
Motherboard
Platform INTEL
Socket LGA1851
Cpu Type Core Ultra
Chipset B860
Memory Speed up to 9066
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)
Graphics Port 1 x HDMI Port,1 x DisplayPort
Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Wireless Networking WiFi 6,Bluetooth 5.3

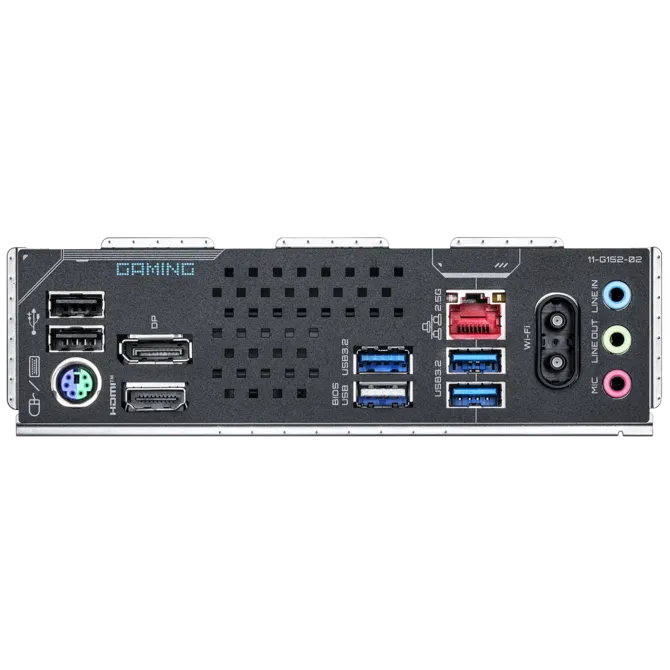

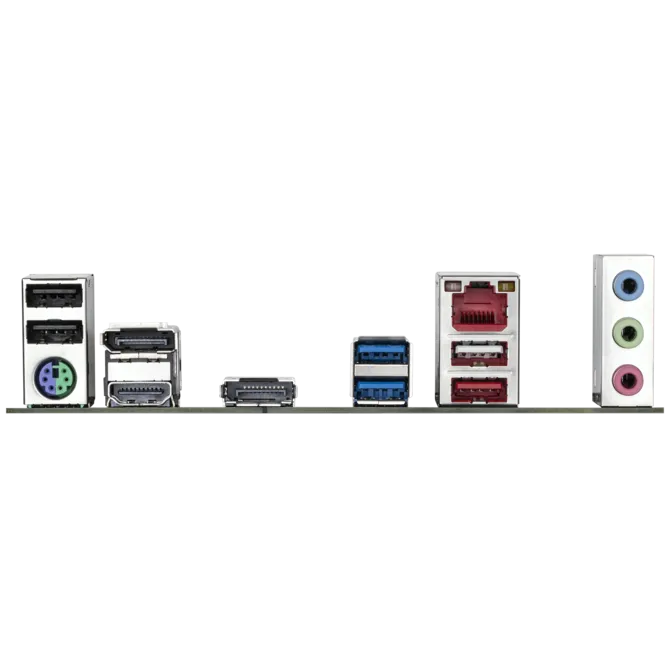

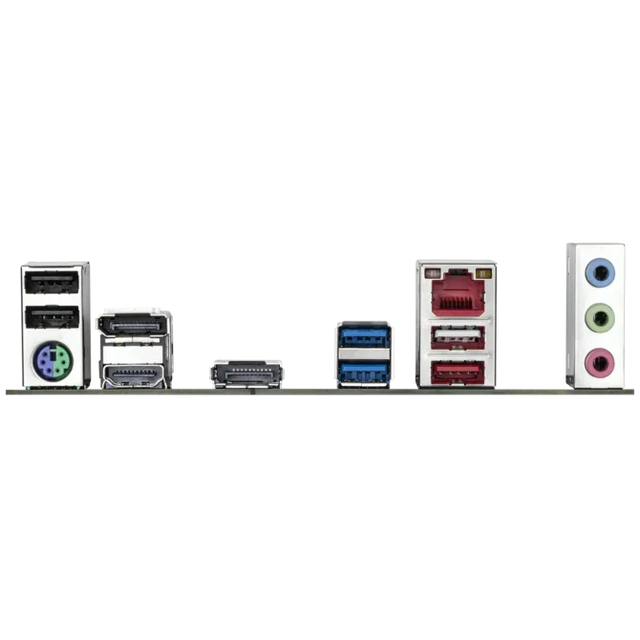

Back Panel I/O Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks

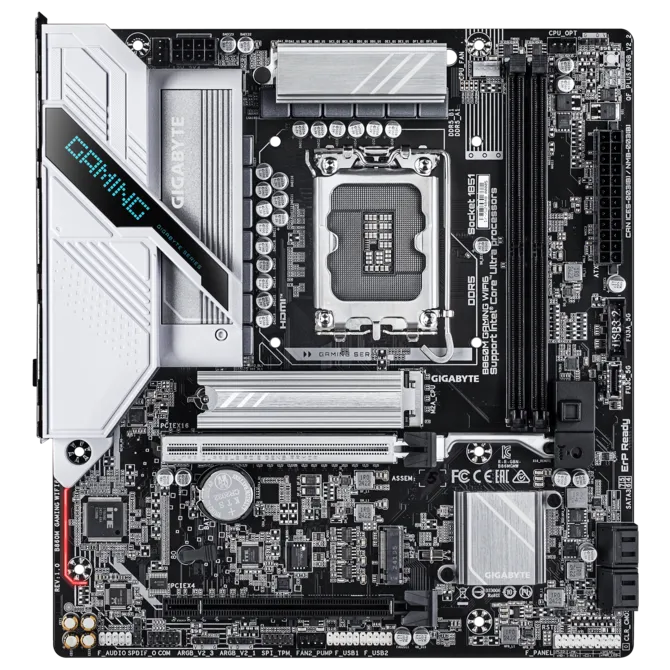

Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
Note

***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

Additional Information

SKU:

Model Number: B860M Gaming WIFI6
