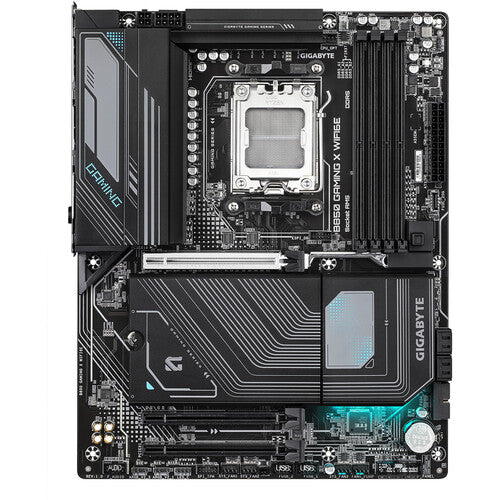

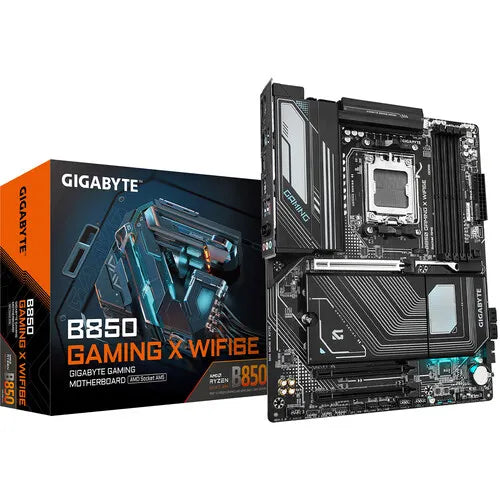

Gigabyte B850 GAMING X WIFI6E AM5 ATX Motherboard

₹ 17,099
Tax included Shipping calculated at checkout.

Description

X3D Turbo Mode

With one-click acceleration, X3D Turbo Mode’s unique optimization parameters allow even Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with thisGIGABYTE‘s BIOS innovation.

AORUS AI Snatch

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

2.5GbE LAN

Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.EZ-Latch DesignsPCIe EZ-Latch PlusEasy ejection with a single click for graphics cardsM.2 EZ-Latch ClickTool-less installation for M.2 heat sinkM.2 EZ-Latch PlusTool-less installation for M.2 SSDsGigabyte Control CenterWith RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.

Specifications

Chipset
AMD B850
CPU Socket
AM5
Memory Slots
4x 288-Pin
Memory Support
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Storage Slots
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots
1x PCIe 5.0 x16 2x PCIe 3.0 x1
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor
ATX
CPU
Chipset
AMD B850
CPU Socket
AM5

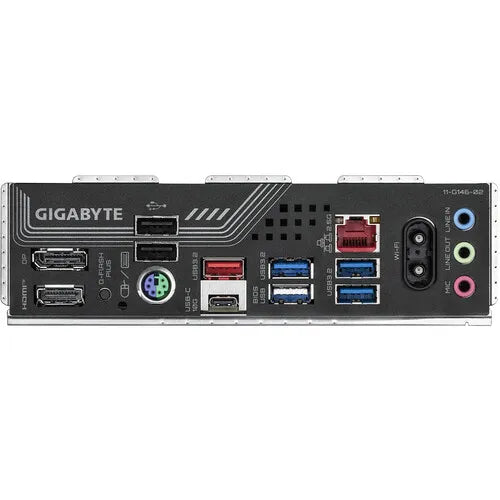

Back Panel I/O
USB
1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 2.0)
Thunderbolt
No
Display
1x DisplayPort Output 1x HDMI Output
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1x Gigabit
PS/2
1x Combo
Wi-Fi Antenna
1x Connector
Buttons
BIOS Flashback
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16 2x PCIe 3.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU 3x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard 1x 8-Pin CPU 1x 4-Pin CPU
Security
TPM Header
LED Header
4x RGB
Diagnostics
Clear CMOS, Power, Reset
BIOS
ROM
256 Mb
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth
5.3
Software
OS Compatibility
Windows 10 to 11 (64-Bit Only)
Physical
Form Factor
ATX
Dimensions
12.0 x 9.6" / 30.5 x 24.4 cm

Additional Information

SKU:

Model Number: B850 GAMING X WIFI6E
