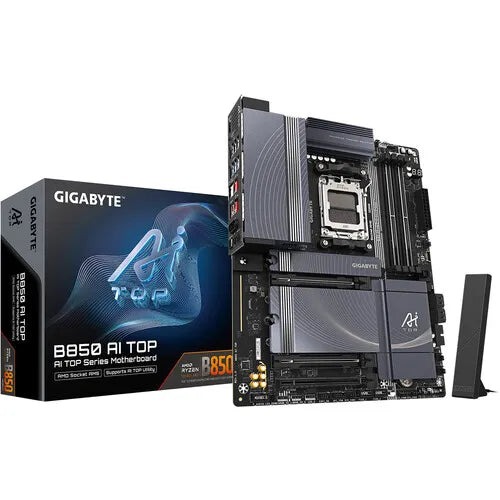

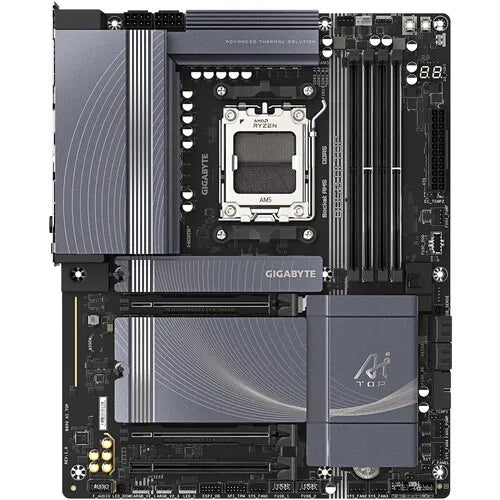

Gigabyte B850 AI TOP AM5 ATX Motherboard

Name: Gigabyte B850 AI TOP AM5 ATX Motherboard
Brand: Novelty Computech
Price: 38990.00 INR
Availability: InStock

By Gigabyte

₹ 38,990

Tax included Shipping calculated at checkout.

Description

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

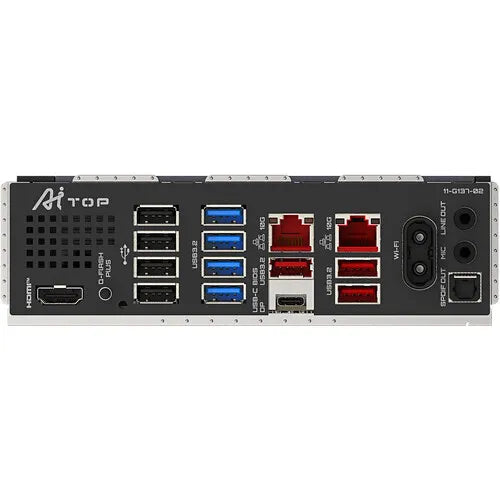

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI Output
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	2x 10GbE
Wi-Fi Antenna	1x Connector
Buttons	BIOS Flashback

Memory

Storage Expansion

SATA	4x SATA III
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
USB	1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Diagnostics	Clear CMOS, Power, Reset

BIOS

ROM

256 Mb

Audio

Audio Codec	Realtek ALC1220 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.4

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6" / 30.5 x 24.4 cm

SKU:

Model Number: B850 AI TOP

Order wil be delivered in 5-7 days
