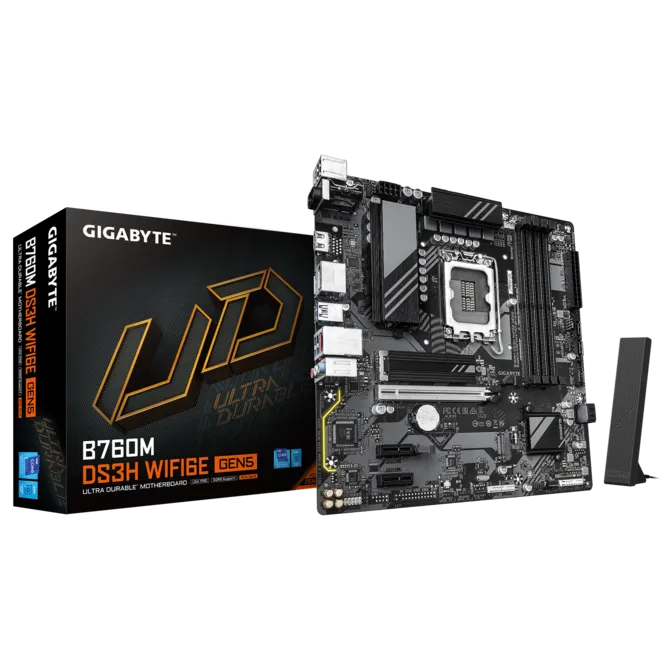

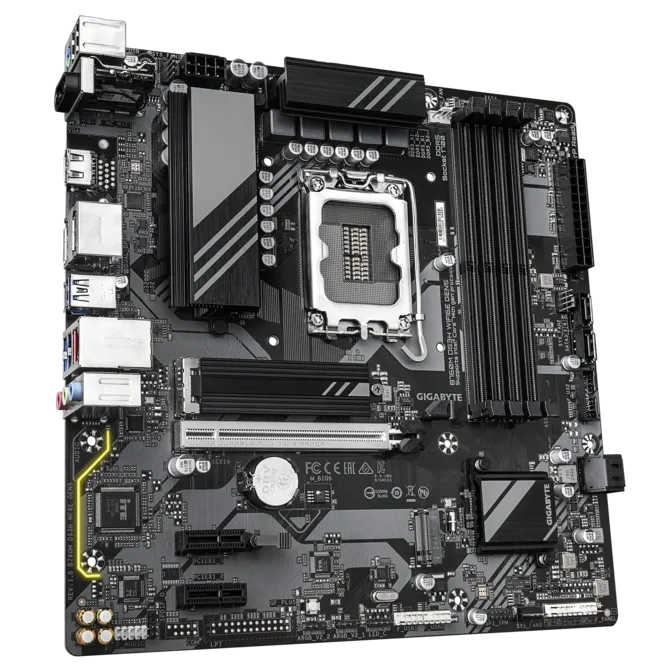

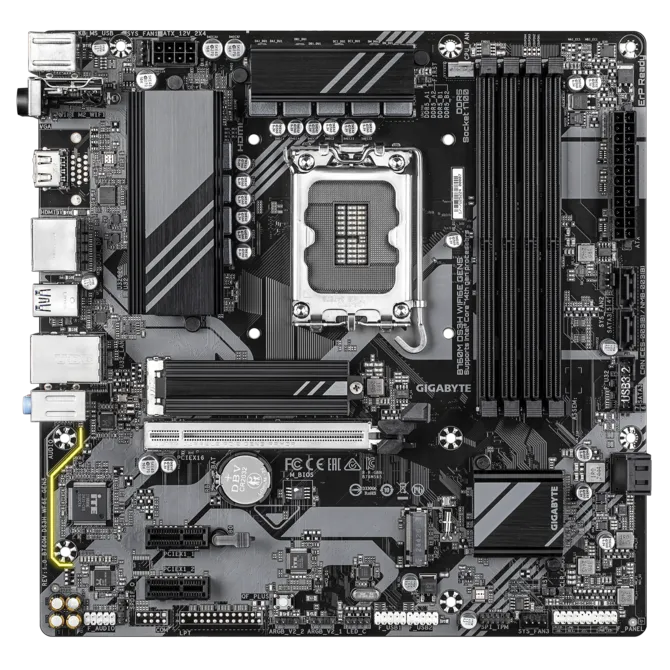

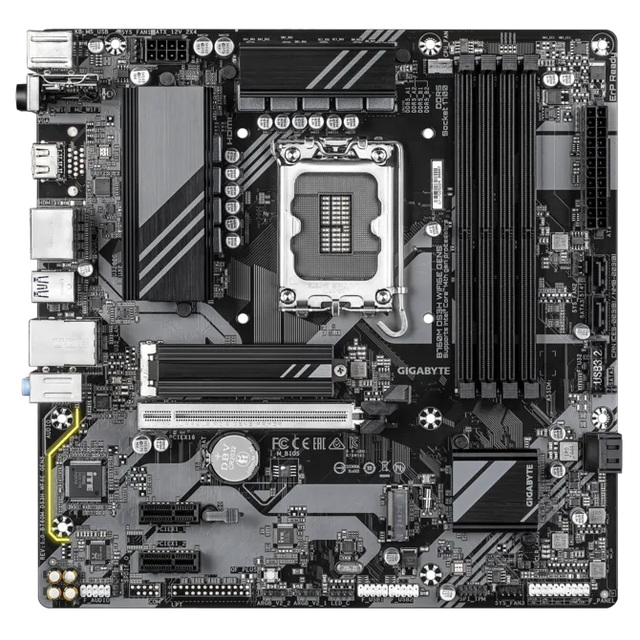

Gigabyte B760M DS3H WIFI6E GEN5 Motherboard

By Gigabyte
₹ 13,890
Tax included Shipping calculated at checkout.

Description

Features:

  • PCIe Gen5 Performance: Perfect Sync to Win
  • Supports Intel Core 14th/ 13th /12th processors
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass: Auto detects the best antenna position for the strongest Wi-Fi signal.
  • EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
  • PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
  • Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
  • Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Extended Connectivity : Rear USB-C 10Gb/s, DP, HDMI
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Express to PCIE5 Performance

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

PCIe UD Slot

GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections

6+2+1 Phases Hybrid VRM Design

  • 6-Layer & PCIe 5.0 Ready PCB
  • Premium Choke and Capacitor

UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 2 x PCIe 3.0 x1

4 x DIMMs, Dual Channel DDR5

Support 14th and 13th Gen.Intel Core Processors

Specifications
Motherboard
Platform INTEL
Socket LGA1700
Cpu Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron
Chipset B760
Memory Speed up to 7600
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules
, please refer to "Memory Support List" on Brand website for more information.)
Graphics Port 2 x DisplayPort, 1 x HDMI
Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Wireless Networking Wi-Fi 6E,Bluetooth 5.3

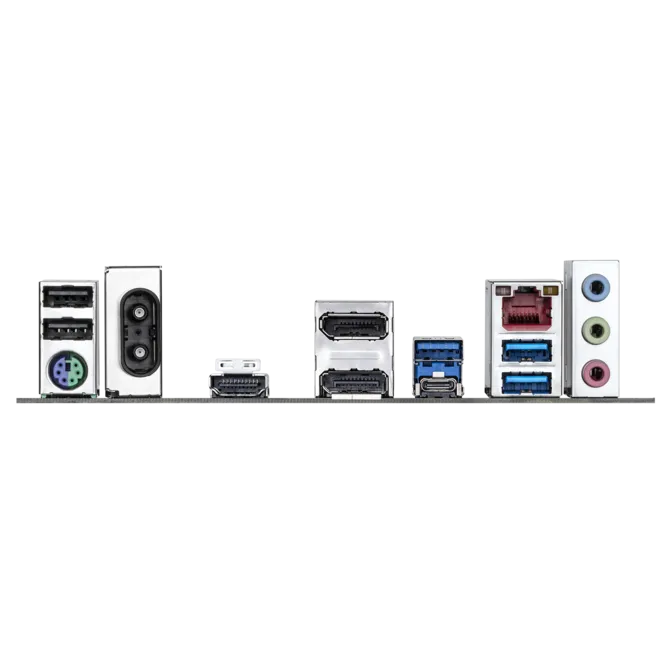

Back Panel I/O Ports 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

Additional Information

SKU:

Model Number: B760M DS3H WIFI6E GEN5
