Gigabyte B760M DS3H GEN5 Motherboard

Name: Gigabyte B760M DS3H GEN5 Motherboard
Brand: Novelty Computech
Price: 11790.00 INR
Availability: InStock

By Gigabyte

₹ 11,790

Tax included Shipping calculated at checkout.

Description

PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th /12th processors
EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Gigabyte Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
Fast Networks : 2.5 GbE LAN
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Category	Details
CPU Support	LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset	Intel® B760 Express
Memory	- DDR5 5600/5200/4800/4400 MT/s (i9/i7) - DDR5 4800/4400 MT/s (i5/i3/Pentium/Celeron) - 4x DDR5 DIMM (up to 256 GB) - ECC/non-ECC Un-buffered DIMMs
Graphics (iGPU)	- D-Sub (1920x1200@60Hz) - HDMI 2.1 (4096x2160@60Hz) - 2x DisplayPort 1.2 (4096x2304@60Hz) - Quad display support
Audio	Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF Out
LAN	Realtek® 2.5GbE LAN
Expansion Slots	- 1x PCIe x16 (Gen5) - 2x PCIe x1 (Gen3)
Storage	- 2x M.2 PCIe 4.0 x4/x2 (2280) - 4x SATA 6Gb/s - RAID 0, 1, 5, 10
USB Ports	- 1x USB-C 3.2 Gen 2 - 5x USB 3.2 Gen 1 (3 rear, 2 internal) - 6x USB 2.0 (2 rear, 4 internal via headers)
Internal Headers	24-pin ATX, 8-pin 12V, 3x fan, RGB Gen2, TPM, SPDIF, front panel, serial, parallel, USB headers, reset/CMOS jumper, Q-Flash Plus

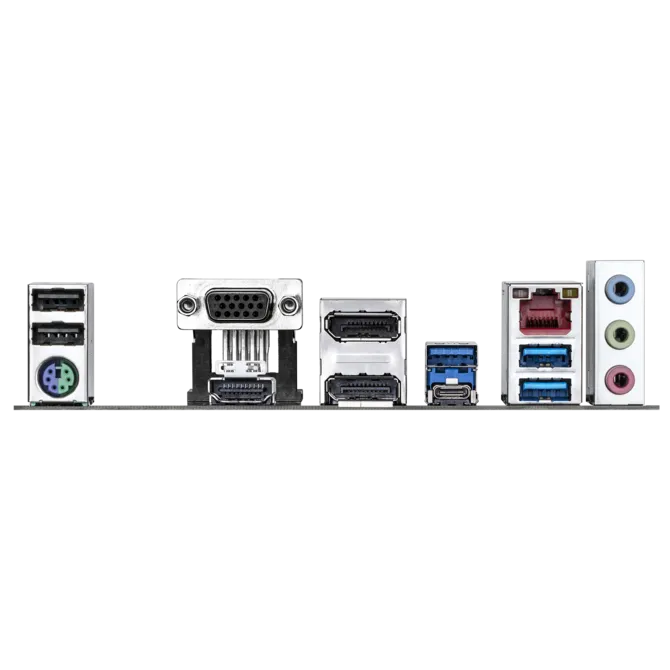

Back Panel I/O	2x USB 2.0, PS/2, D-Sub, HDMI, 2x DisplayPort, 3x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2, RJ-45, 3x Audio jacks
I/O Controller	iTE® I/O Controller
Monitoring	Voltage, temperature, fan speed, water flow rate, fan fail warning, smart fan control
BIOS	128 Mbit flash, UEFI BIOS, Q-Flash, Q-Flash Plus
Software	Norton Internet Security (OEM), GIGABYTE Control Center (GCC)
OS Support	Windows 11/10 64-bit
Form Factor	Micro ATX, 24.4cm x 24.4cm

SKU:

Model Number: B760M DS3H GEN5

Order wil be delivered in 5-7 days
