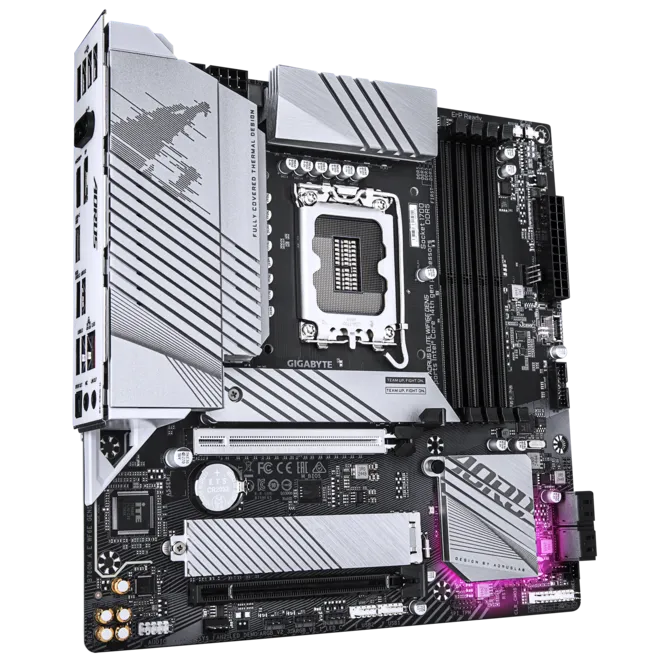

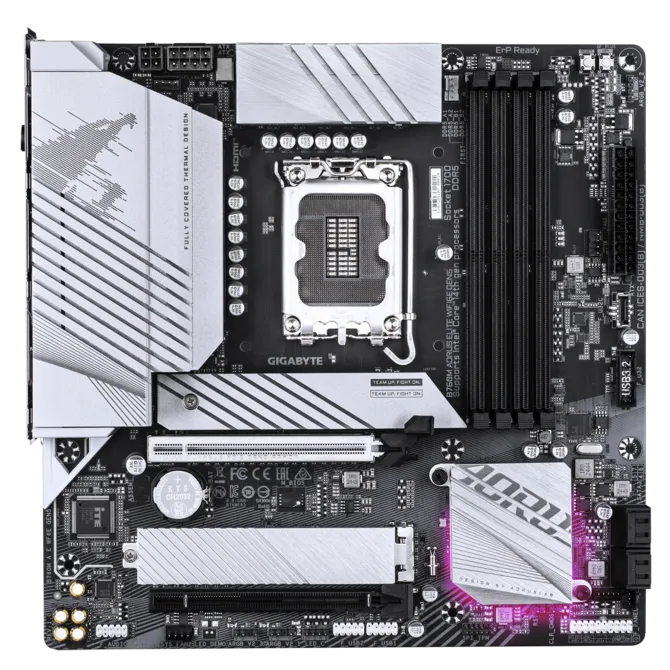

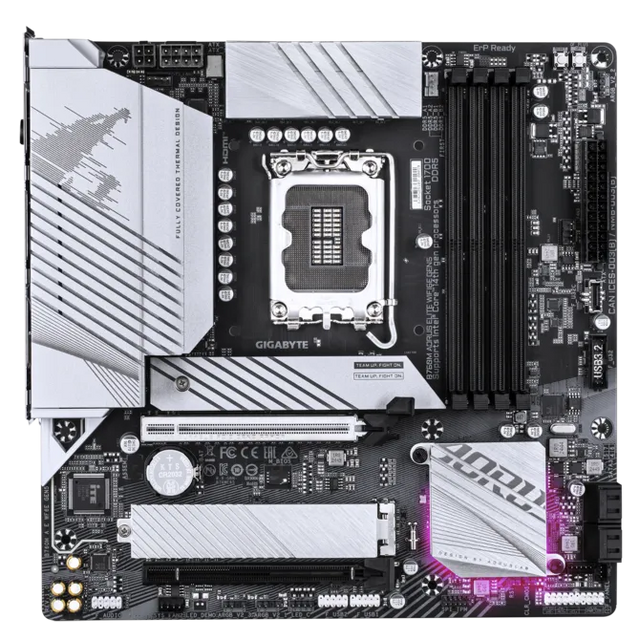

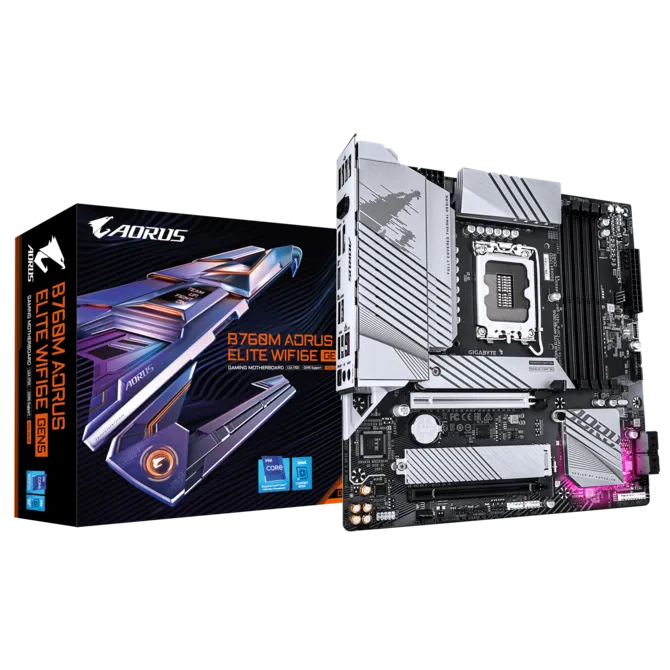

Gigabyte B760M AORUS ELITE WIFI6E GEN5 Motherboard

Name: Gigabyte B760M AORUS ELITE WIFI6E GEN5 Motherboard
Brand: Novelty Computech
Price: 17349.00 INR
Availability: InStock

₹ 17,349

Tax included Shipping calculated at checkout.

Description

PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th /12th processors
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Gigabyte High-Res Audio : ALC1220 & High-End Audio Capacitors

Specifications

Category	Specification
CPU Support	LGA1700 socket – Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (L3 cache varies by CPU)
Chipset	Intel® B760 Express Chipset
Memory	- Up to 256 GB (4× DDR5 DIMMs, 64 GB each) - Dual channel architecture - ECC/Non-ECC Un-buffered DIMMs supported - XMP 3.0 ready
	- i9/i7 (14th/13th Gen): DDR5 5600/5200/4800/4400 MT/s - i5/i3 (13th Gen), all 12th Gen: DDR5 4800/4400 MT/s
Onboard Graphics	Intel® Integrated Graphics support (CPU dependent): - HDMI 2.1 (4096x2160@60Hz) - DisplayPort 1.2 (4096x2304@60Hz)
Audio	Realtek® Audio CODEC 2/4/5.1/7.1-channel HD Audio S/PDIF Out supported
Networking	- LAN: Realtek® 2.5GbE (2.5/1/0.1 Gbps) - Wi-Fi: Intel® Wi-Fi 6E AX210 (2.4/5/6 GHz) - Bluetooth: 5.3
Expansion Slots	- 1 x PCIe x16 (Gen 5.0, CPU) - 1 x PCIe x16 (Gen 4.0, Chipset, runs at x4)
Storage Interfaces	- CPU: 1 x M.2 (2280 PCIe 4.0 x4/x2) - Chipset: 1 x M.2 (22110/2280 PCIe 4.0 x4/x2), 4 x SATA 6Gb/s - RAID 0/1/5/10 for SATA
USB Ports	- Rear I/O: • 1 x USB-C (3.2 Gen 2x2) • 1 x USB-A (3.2 Gen 2, red) • 3 x USB 3.2 Gen 1 • 4 x USB 2.0
	- Internal Headers: • 1 x USB-C (3.2 Gen 2) • 1 x USB 3.2 Gen 1 header • 2 x USB 2.0 headers (4 ports total)
Internal Connectors	- Power: 1× 24-pin ATX, 1× 8-pin ATX 12V, 1× 4-pin ATX 12V - 1× CPU fan, 3× system fans - 3× ARGB Gen2, 1× RGB LED header
	- 2× M.2, 4× SATA, Front panel/audio headers - USB-C, USB 3.2 Gen 1, USB 2.0 headers - 2× Thunderbolt AIC connectors - Q-Flash Plus

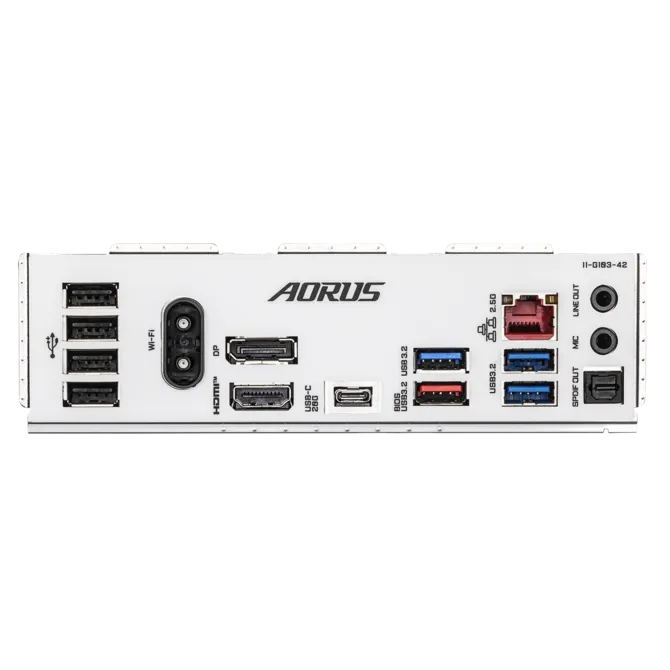

Back Panel I/O	- 1× USB-C (3.2 Gen 2x2) - 1× USB-A (3.2 Gen 2, red) - 3× USB 3.2 Gen 1 - 4× USB 2.0 - 1× HDMI - 1× DisplayPort - 1× RJ-45
	- 2× Wi-Fi Antennas (2T2R) - 1× Optical S/PDIF Out - 2× Audio jacks
Monitoring	Voltage, temperature, fan speed, water flow, fan fail warning, fan speed control (depends on fan type)
BIOS	256 Mbit AMI UEFI BIOS Q-Flash, Q-Flash Plus supported
Software	Norton® Internet Security (OEM) GIGABYTE Control Center (GCC) LAN bandwidth management
OS Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX (24.4 cm × 24.4 cm)

Additional Information

SKU:

Model Number: B760M AORUS ELITE WIFI6E GEN5

Delivery and Shipping

Order wil be delivered in 5-7 days
