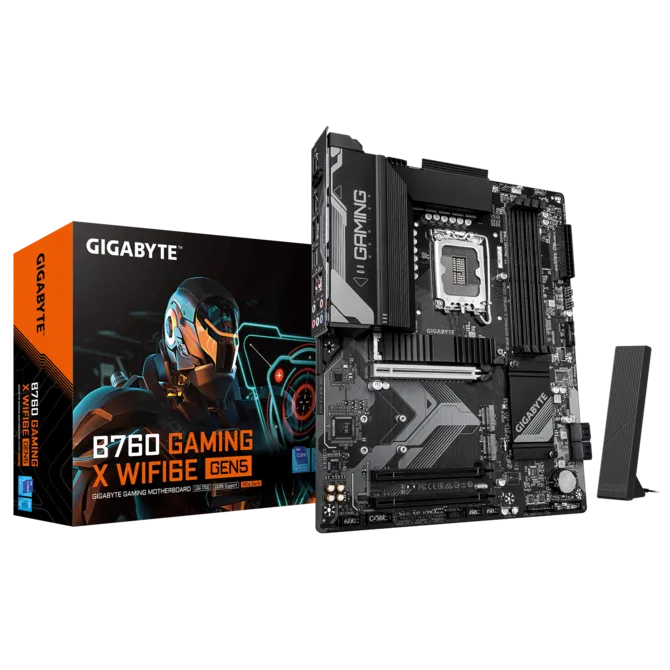

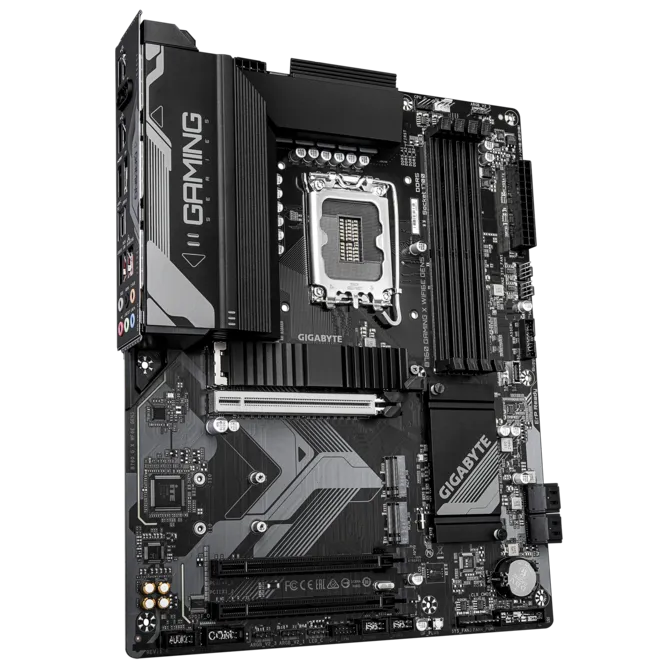

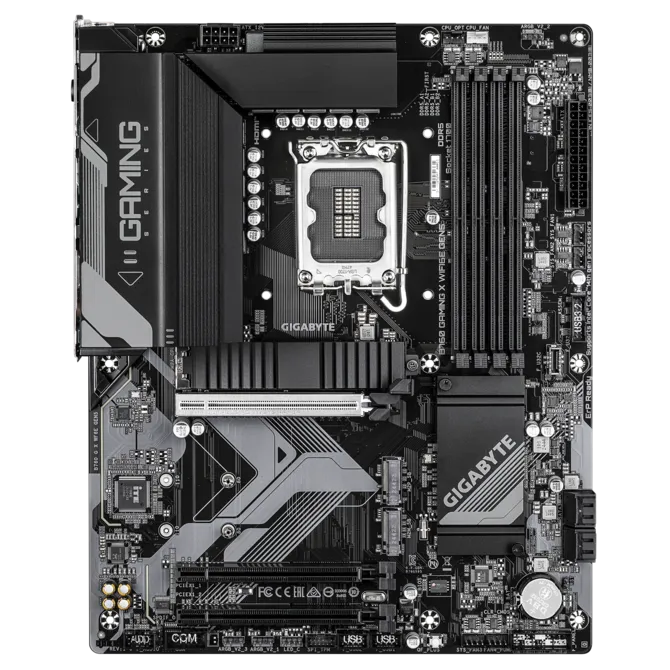

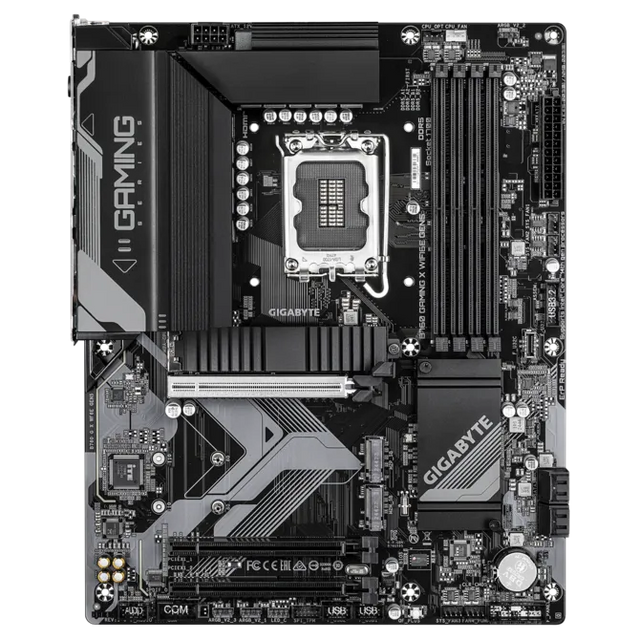

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 Motherboard

By Gigabyte
₹ 16,490
Tax included Shipping calculated at checkout.

Description
  • PCIe Gen5 Performance : Perfect Sync to Win
  • Supports Intel® Core™ 14th/ 13th/12 processors
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
  • EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
  • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
  • Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
  • Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
  • Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications
CPU LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® B760 Express Chipset
Memory 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s<br>13th Gen Core™ i5/i3 & 12th Gen Core™ Pentium®/Celeron®: DDR5 4800/4400 MT/s
Onboard Graphics Integrated Intel® HD Graphics<br>- 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)<br>- 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
Audio Realtek® Audio CODEC, HD Audio (2/4/5.1/7.1-channel), S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Intel® Wi-Fi 6E AX210, Bluetooth 5.3, Wi-Fi a/b/g/n/ac/ax
Expansion Slots CPU: 1 x PCI Express x16 (PCIe 5.0 x16)<br>Chipset: 2 x PCI Express x16 (PCIe 3.0 x1)
Storage Interface CPU: 1 x M.2 (PCIe 4.0 x4/x2 SSD)<br>Chipset: 2 x M.2 (PCIe 4.0 x4/x2 SSD), 4 x SATA 6Gb/s, RAID 0/1/5/10
USB Chipset: 1 x USB Type-C® (USB 3.2 Gen 2)<br>1 x USB 3.2 Gen 2 Type-A<br>1 x USB Type-C® (USB 3.2 Gen 1)<br>3 x USB 3.2 Gen 1<br>1 x USB 2.0/1.1<br>8 x USB 2.0/1.1 (via hubs)
Internal I/O Connectors Includes 24-pin ATX, 8-pin ATX 12V, CPU/Water Cooling pump fan headers, RGB LED headers, SATA, USB Type-C®, TPM header, Q-Flash Plus button

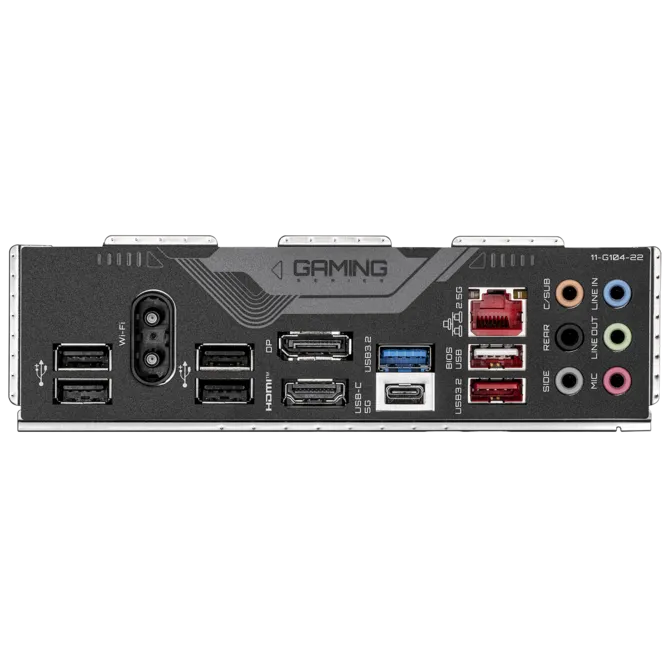

Back Panel Connectors USB ports, DisplayPort, HDMI port, RJ-45, antenna connectors, 6 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, Temperature, Fan speed detection/control, Water cooling flow rate detection
BIOS 1 x 256 Mbit flash, AMI UEFI BIOS
Unique Features GIGABYTE Control Center, Q-Flash/Plus, Smart Backup
Bundled Software Norton® Internet Security, LAN bandwidth management
Operating System Windows 11/10 64-bit
Form Factor ATX Form Factor (30.5cm x 24.4cm)

Additional Information

SKU:

Model Number: B760 GAMING X WIFI6E GEN5

Delivery and Shipping

Order wil be delivered in 5-7 days
