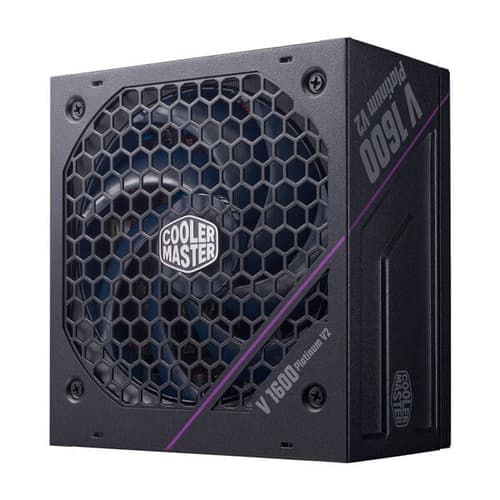

Cooler Master V1600 Platinum V2 ATX 3.1 Fully Modular SMPS

Features:

• Dual 40 series​ GPU support
• ATX 3.1 support & two durable 90° 12V-2x6 cables
• Advanced heat dissipation
• Ultra-quiet Mobius fan
• 80 Plus Platinum certification
• 12-year warranty

Ultra-quiet Mobius fan: An ultra-quiet Mobius fan featuring high-performance oil reflow and an innovative ring blade design.

80 Plus Platinum efficiency certification: This unit is certified to achieve more than 92% efficiency at typical loads.

Optimized thermal performance: Anodic-coated heat sinks keep average component temperatures lower than a traditional heat
sink for enhanced durability and a prolonged life span.

ATX 3.1 support & a durable 12V-2x6 cable: Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable featuring
lower temperatures, enhanced durability, and improved safety.

Dual 40 series GPU support: Two 12V-2x6 connectors for dual 40 series GPU support.

Protective coating: A conformal coating provides protection against dust, moisture, and insects.

Interleaved PFC design: An interleaved PFC decreases power loss by minimizing the current and reducing interference.

Smart thermal control mode: Fan speed is automatically adjusted according to the PSU’s operating temperature.

Silent fan performance with a zero-RPM mode: This unit defaults to zero fan spin, providing silent fan performance.

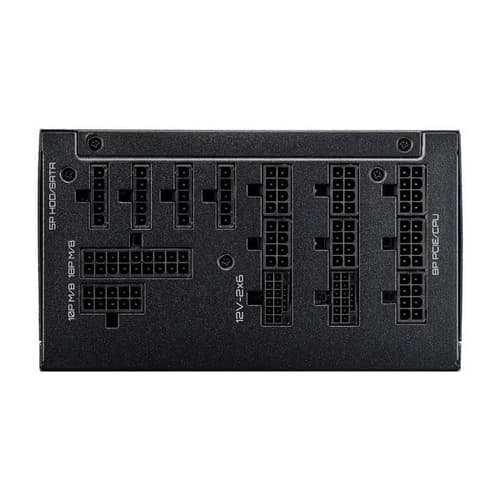

Fully modular cabling: Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.

High-quality Japanese capacitors: Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.

12-year warranty: This unit comes with a standard limited manufacturing warranty of 12 years from the date of purchase.

Specification:

ModelV Platinum 1600 V2Item CodeMPZ-G002-AFAP-BINATX VersionATX 12V Ver. 3.1PFCActive PFCInput Voltage100 - 240VInput Current16 - 8AInput Frequency50 - 60HzDimensions (L x W x H)160 x 150 x 86mmFan Size135 mmFan BearingLDB (Mobius FAN)Fan Speed2400±10% rpmEfficiency≥ 92% @ Typical Load80 PLUS Rating80 PLUS PlatinumErP 2014 Lot 3YesOperating Temperature0 ~ 50℃Power Good Signal100 - 150msHold Up Time≥ 16msMTBF>100,000 hoursProtectionsOPP / OVP / OTP / OCP/ SCP / UVP / Surge & InrushProtectionRegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,RoHS2.0 / BIS, KC (based on region's request.)Connectors ATX 24 Pinx1 = 1x (650mm)EPS 4+4 Pinx1 = 1x (650mm)EPS 8 Pinx1 = 1x (650mm)SATAx16 = 4x (500+120+120+120mm)Peripheral 4 Pinx4 = 1x (500+120+120+120mm)PCI-e 6+2 Pinx5 = 5x (550mm)12V-2x6x2 = 2x (650mm)Warranty12 yearsNote
