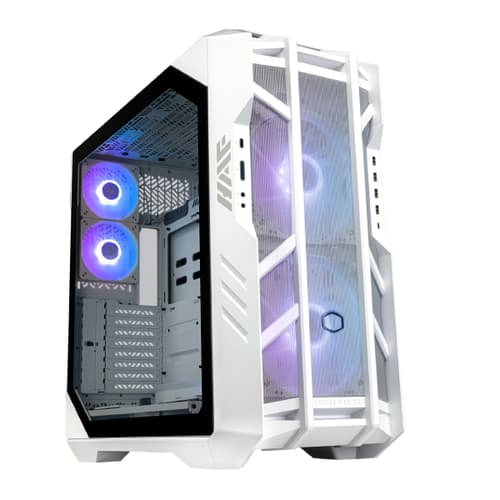

Features:
- Unparalleled Hardware & Cooling Capabilities
- Mammoth Water Cooling Support
- Exclusive Tool-Less Technology
- ARGB Gen2 ready with MasterPlus+ integration
Mammoth Radiator Support
HAF 700 provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 480mm (side panel), 360mm (front panel, bottom panel, or up to dual radiators on the top panel), or 240mm (rear panel).
Rotatable Radiator Bracket
HAF 700 boasts two rotatable fan/radiator brackets. These brackets are fully modular and can be installed in multiple positions for complex setups. Users may choose one of the two to rotate, showcasing their radiator at unique angles.
Tool-less Removable Top Panel
Exclusive tool-less removable top panel design allows for easy removal of top and side panels. Cooling components such as fans and radiators can be effortlessly installed, accessed and maintained.
200mm SickleFlow White ARGB PWM Performance Edition
HAF 700 comes with dual 200mm Sickleflow PWM fans tailored to maximize the performance potential of installed components. Fan curves can be customized to keep temperatures and noise levels low, even in extreme overclocking scenarios.
Integrated 7x PWM & 5x ARGB Hub
This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices, allowing users to customize fan speeds and ARGB effects in depth according to their system needs or personal preference.

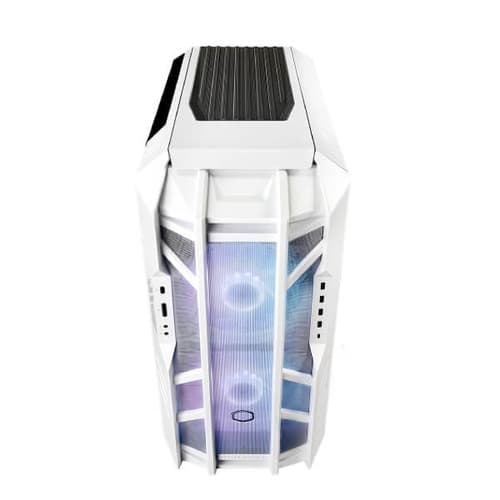

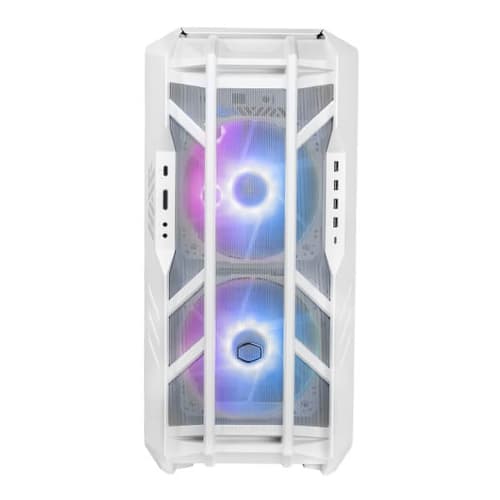

Unrestricted Front Panel Intake
HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake. With the front panel structurally
reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

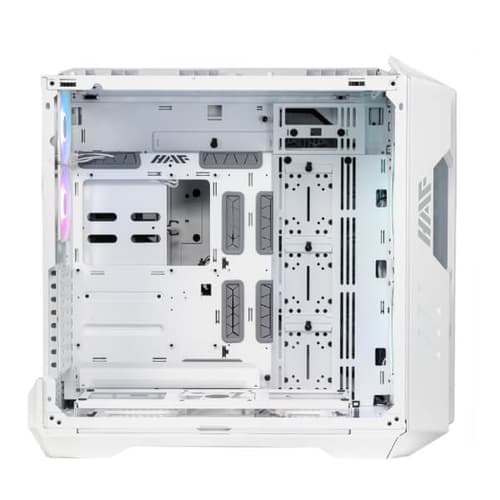

Multi Chamber Layout
The body of the HAF 700 is organized into multiple sectors, including a cooling chamber, cable management gutter, dedicated
swiveling hard drive cage, as well as a power supply slot, allowing for complex yet tidy builds. Furthermore, by segregating non heat
sensitive components, heat dissipation can be optimized and targeted towards heat sensitive components at an overall higher
efficiency.
ARGB Gen2 Ready, Controller Included
ARGB Gen2 devices allow software to automatically detect the arrangement and number of LEDs in each ARGB device. Thus, ARGB Gen 2 devices make full range customization possible as each LED can be independently controlled.
Each device will be independently recognized, regardless of the number of devices connected to a single ARGB port, allowing users to create complex lighting setups with minimal wiring and configuration.
Unlike some ARGB Gen1 devices which sacrifice hardware compatibility for customization flexibility, Cooler Master’s ARGB Gen2 devices remain fully compatible with third party devices, granting users the freedom to mix and match multiple devices from different ecosystems.
Tool-less Vertical GPU Mounting (Patent Pending)
The back panel implements a patent pending clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools. This custom design locks the GPU firmly in place in case of transportation. Safety pins prevent the GPU from falling and being damaged when the clamp is opened.
Tool-less PSU Mount
HAF 700 implements a never-seen-before way of securing the power supply without the need to fiddle with tools. To install, simply
slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case.
Tool-less HDD Cage
The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access, maintain and swap hard
drives with ease.
Tool-less Multifunction Bracket (HDDs / SSDs / Pumps / Reservoirs)
HAF700 features versatile brackets that can be used to mount an SSD, HDD, or a pump/reservoir for liquid cooling. Brackets can be placed in multiple positions inside the case, including the cooling
brackets and the open side of the motherboard tray.
Specification:
ModelH700-WGNN-S00Exterior ColorWhiteMaterials - ExteriorMesh, Steel, PlasticMaterials - Left Side PanelTempered Glass, Steel, PlasticDimensions (L x W x H)
- 556 x 279 x 540 mm (Body Size)
- 666 x 291 x 626 mm (incl. Protrusions)
Motherboard SupportMini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEBExpansion Slots82.5" / 3.5" Drive Bays (Combo)9 (4 HDD bracket, 5 Screw+Rubber)I/O Panel - USB Ports
- 1x USB 3.2 Gen 2 Type C
- 4x USB 3.2 Gen 1 (3.0)
I/O Panel - Audio In / Out
- 1x 3.5mm 4 Poles Audio Jack
- 1x 3.5mm Mic Jack
Pre-installed Fans - Front2x SickleFlow 200 ARGB PWMPre-installed Fans - Rear2x SickleFlow 120 ARGB PWMPre-installed Fans - Bottom1x SickleFlow 120 ARGB PWMFan Support - Top
- 2x 200mm
- 3x 140mm
- 6x 120mm (Remove 480mm bracket)
Fan Support - Front2x 200mmFan Support - Rear2x 120mmFan Support - Bottom3x 120/140mmFan Support - Side4x 120mm / 3x 140mmRadiator Support - TopUp to 2x 360mm / 1x 420mmRadiator Support - RearUp to 240mmRadiator Support - BottomUp to 420/360mmRadiator Support - SideUp to 480/420/360mmClearance - CPU Cooler166mm / 6.53 inchClearance - PSU200mm / 7.87 inchClearance - GFX490mm / 19.29 inchCable Routing - Behind Motherboard Tray90-101mmIncluded Accessories
- 1x Rotatable Radiator Bracket
- 1x LED Controller A1 (ARGB Gen2)
- 1x ARGB/PWM Hub
Dust FiltersBottom, Right sidePower Supply SupportBottom Mount, E-ATXSeriesHAF SeriesSizeFull TowerWarranty2 YearsNote*** Features, Price, Specifications are subject to change without notice.
