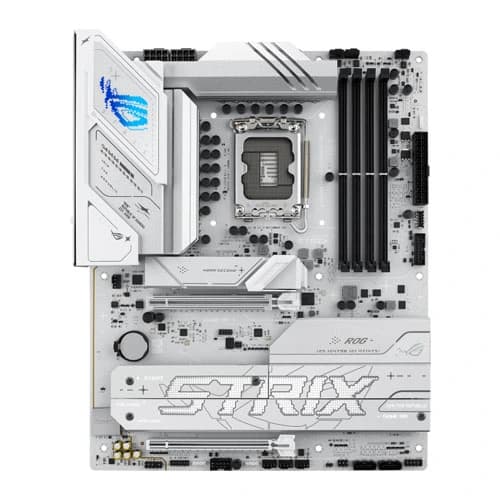

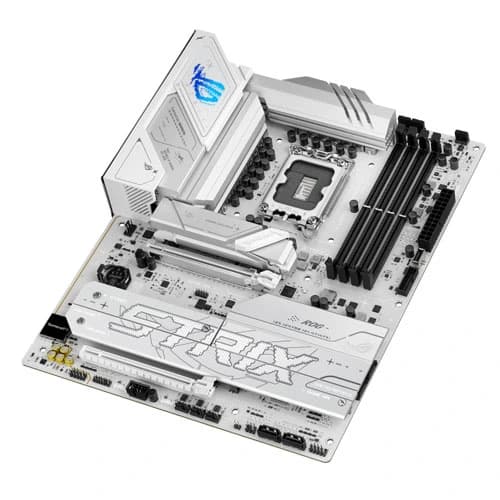

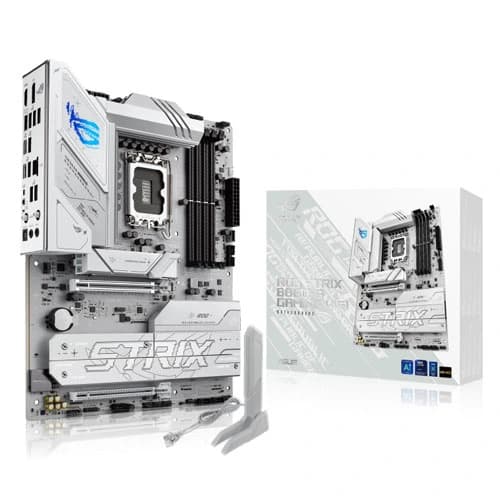

ASUS ROG STRIX B860-A Gaming WIFI ATX Motherboard

Platform : INTEL

Socket : LGA1851

Cpu Type : Core Ultra

Chipset : B860

Memory Speed : up to 8600+

Max Memory Support : 256 GB

Supported Memory Type : DDR5

Channel Supported : Dual Channel

Memory Feature :
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Graphics Port :
1 x DisplayPort,1 x HDMI,1 x USB Type-C

Expansion Slots :
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
- To ensure compatibility of the device installed, please refer to Brand Website for the list of supported peripherals.

Wireless Networking : WiFi 7,Bluetooth 5.4

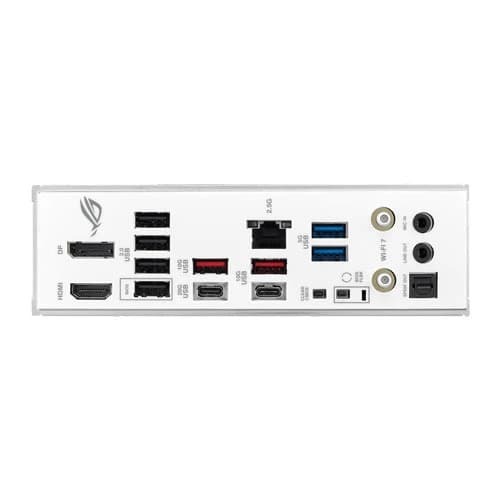

Back Panel I/O Ports :
1 x USB4® (20Gbps) port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connector :
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Form Factor : ATX

Socket
LGA1851

Chipset
B860

Memory
4DDR5

MAX RAM GB
256

M.2 support
3

D-sub/DVI /HDMI
N/N/Y/DP

Audio
SFX

PCIe x16/x4/ x1-mini /PCI
2/0/1/0

Total USB
8/6

SATA 3/6GB/ RAID
0/4/Y

LAN
GB

AURA RGB
Y

RGB Header
2

WIFI
Y
