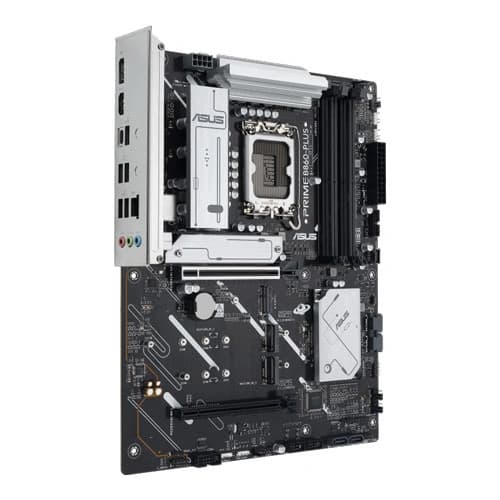

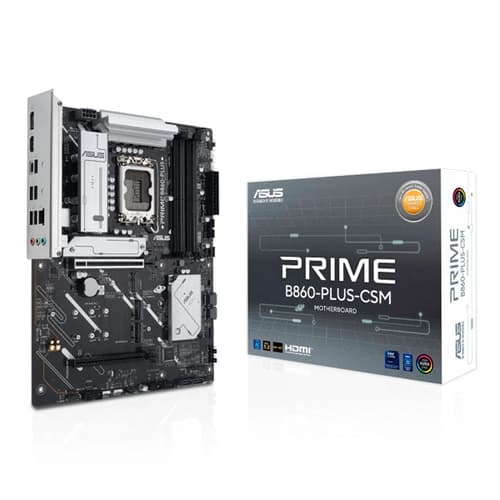

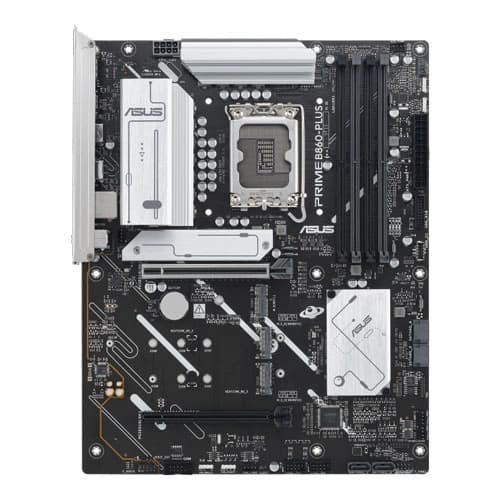

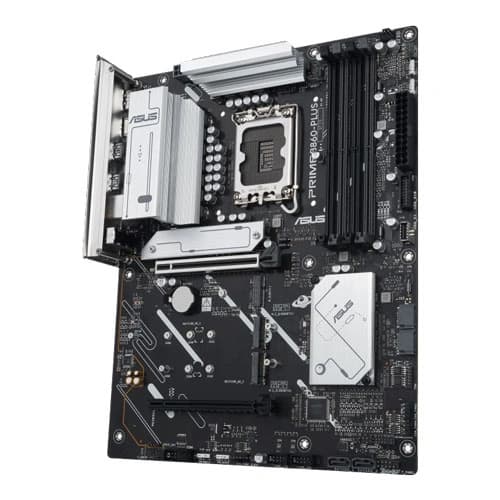

ASUS Prime B860-Plus-CSM ATX Motherboard

Platform : INTEL

Socket : LGA1851

Cpu Type : Core Ultra

Chipset : B860

Memory Speed : up to 8666+

Max Memory Support : 256 GB

Supported Memory Type : DDR5

Channel Supported : Dual Channel

Memory Feature :
Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Graphics Port :
1 x DisplayPort,1 x HDMI

Expansion Slots :
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Back Panel I/O Ports :
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connector :
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header support 4 additional USB 2.0 ports
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Form Factor : ATX

Socket
LGA1851

Chipset
B860

Memory
4DDR5

MAX RAM GB
256

M.2 support
2

D-sub/DVI /HDMI
N/N/Y/DP

Audio
7.1

PCIe x16/x4/ x1-mini /PCI
2/0/1/0

Total USB
6/7

SATA 3/6GB/ RAID
0/4/Y

LAN
GB

AURA RGB
Y

RGB Header
2

WIFI
N
