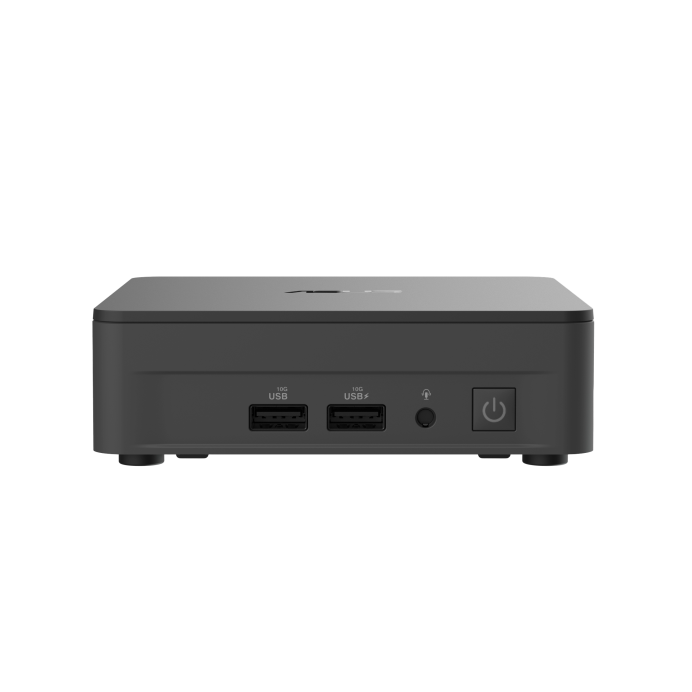

ASUS NUC 13 Pro

Model : ASUS NUC 13 Pro Mini PC

Form Factor : Mini PC

Operating System :
W/O OS
Windows 11 Home
*Pre-configured Windows OS version may differ by country inquire with local sales

CPU : Intel® Core™ i3-1315U Processor, cTDP 20W

Chipset : Integrated

Graphics :
Intel® Iris® Xe Graphics (i5/i7)
Intel® UHD Graphics (i3)

Memory :
Max Capacity: 32GB DDR4-3200 SO-DIMM x 2
Included: 4GB DDR4-3200 SO-DIMM

Storage :
Support :
128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+
128GB~1TB M.2 2242 SATA SSD
Included :
512G M.2 2280 NVMe™ PCIe® 4.0 SSD​

Wireless Data Network :
Intel® Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3
*Bluetooth® version may change with different OS version.

LAN : Intel® Ethernet Controller I226-V, 2.5G

Audio : Realtek ALC269

Front(Side) I/O Ports :
2 x USB 3.2 Gen2 Type-A
1 x 3.5mm Headset Jack
1 x Kensington Lock

Back I/O Ports :
2 x Thunderbolt 4 Type-C w/ DisplayPort 1.4
1 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
2 x HDMI 2.1 (TMDS)
1 x RJ45 LAN
1 x DC-in

Power Supply :
19VDC, 4.74A, 90W Power Adapter (i3 CPU)

Dimensions (W x D x H) : 117 x 112 x 37 mm

Weight : 502g

ID : Black, With ASUS LOGO

Accessories :
AC Adapter+Power Cord*
VESA Bracket and Screws
Cable Clip
Safety/Caution/Regulatory Insert
Warranty Card
*Power cord included is region specific, and some SKUs do not include the power cord

Model
RNUC13ANHI300000I

Generation
13

CPU
Core™ i3-1315U

M.2 slot
1 x M.2

SATA ports
1 x SATA

I/O ports
2 x HDMI

Audio
Y

LAN
2.5G

BT
Y

WiFi
Y
