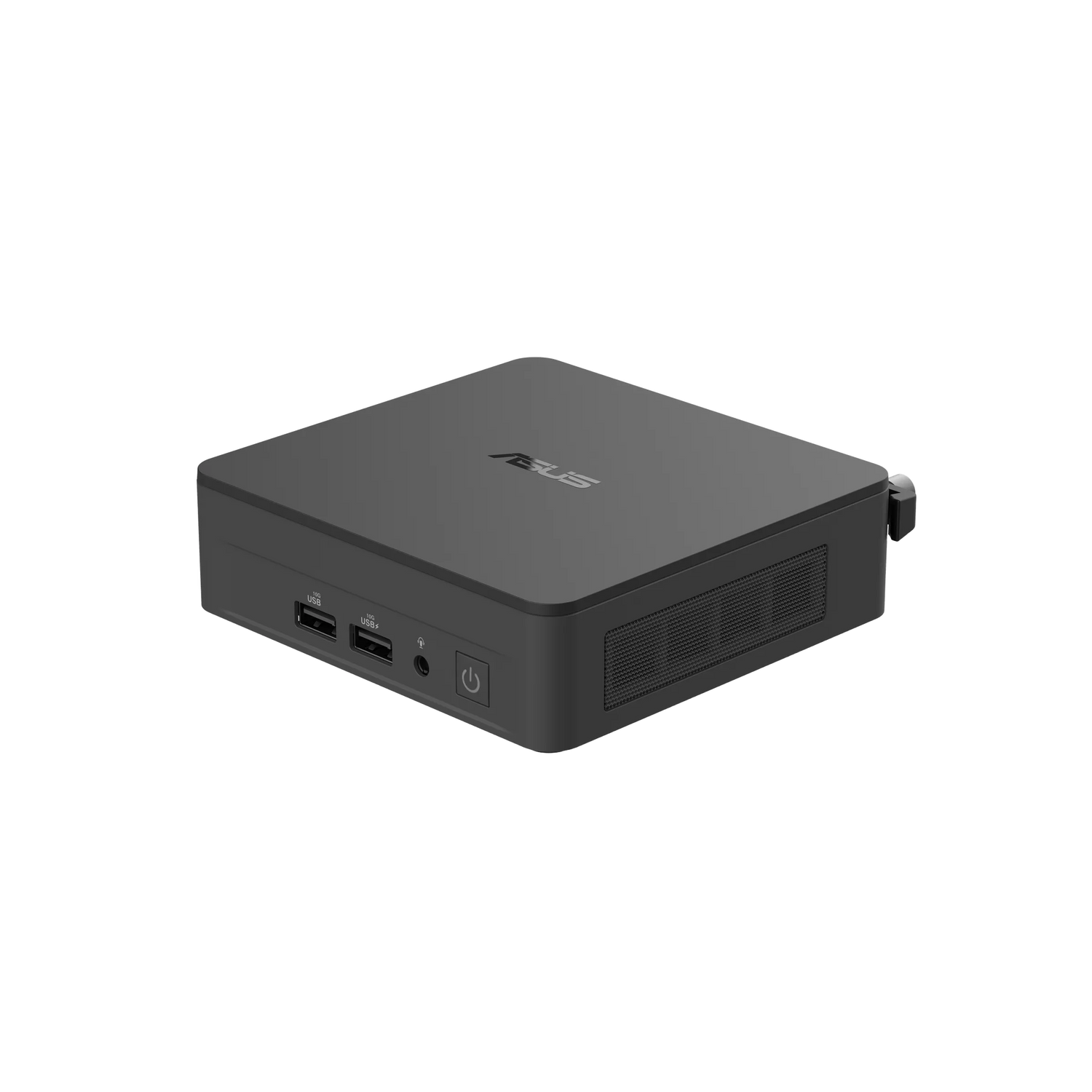

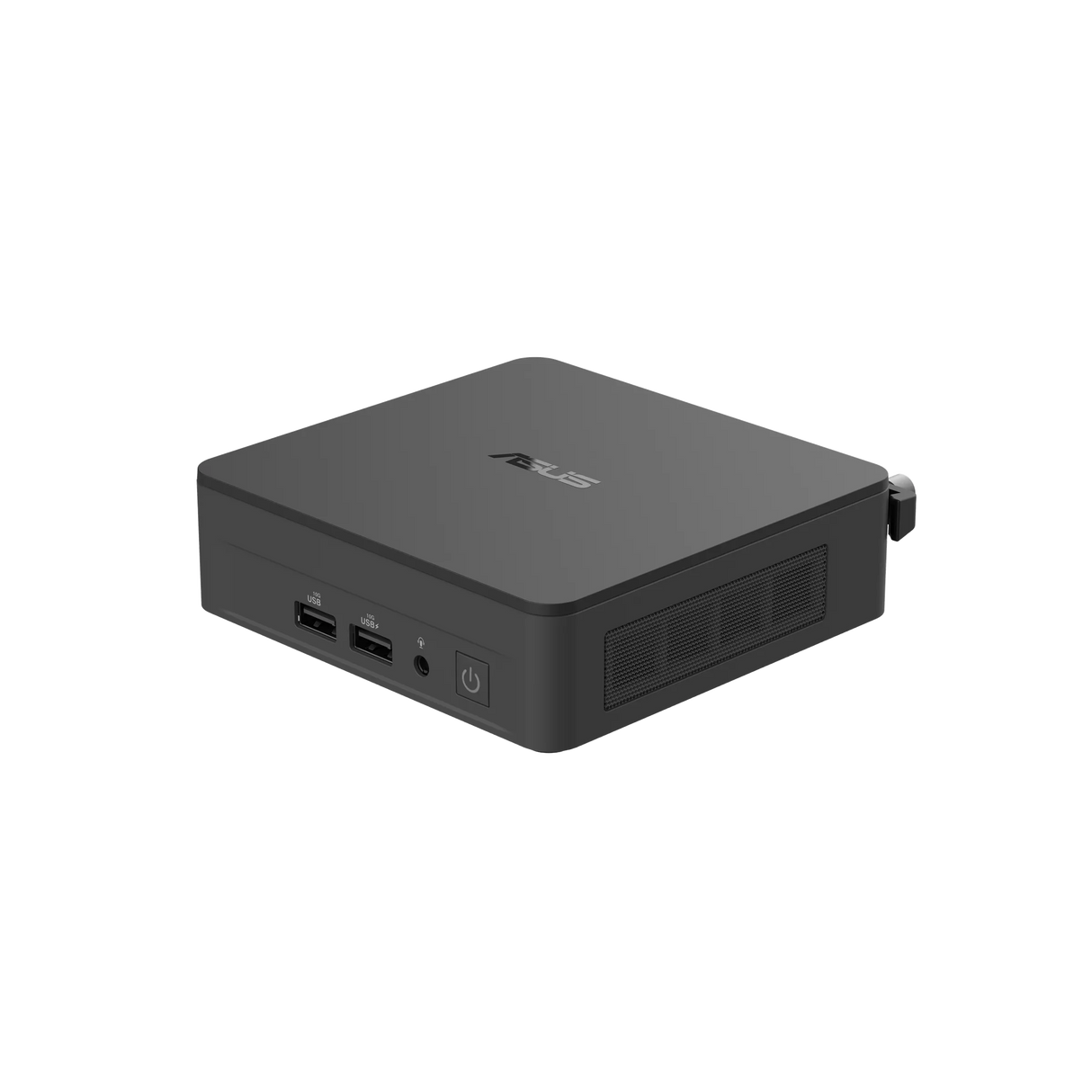

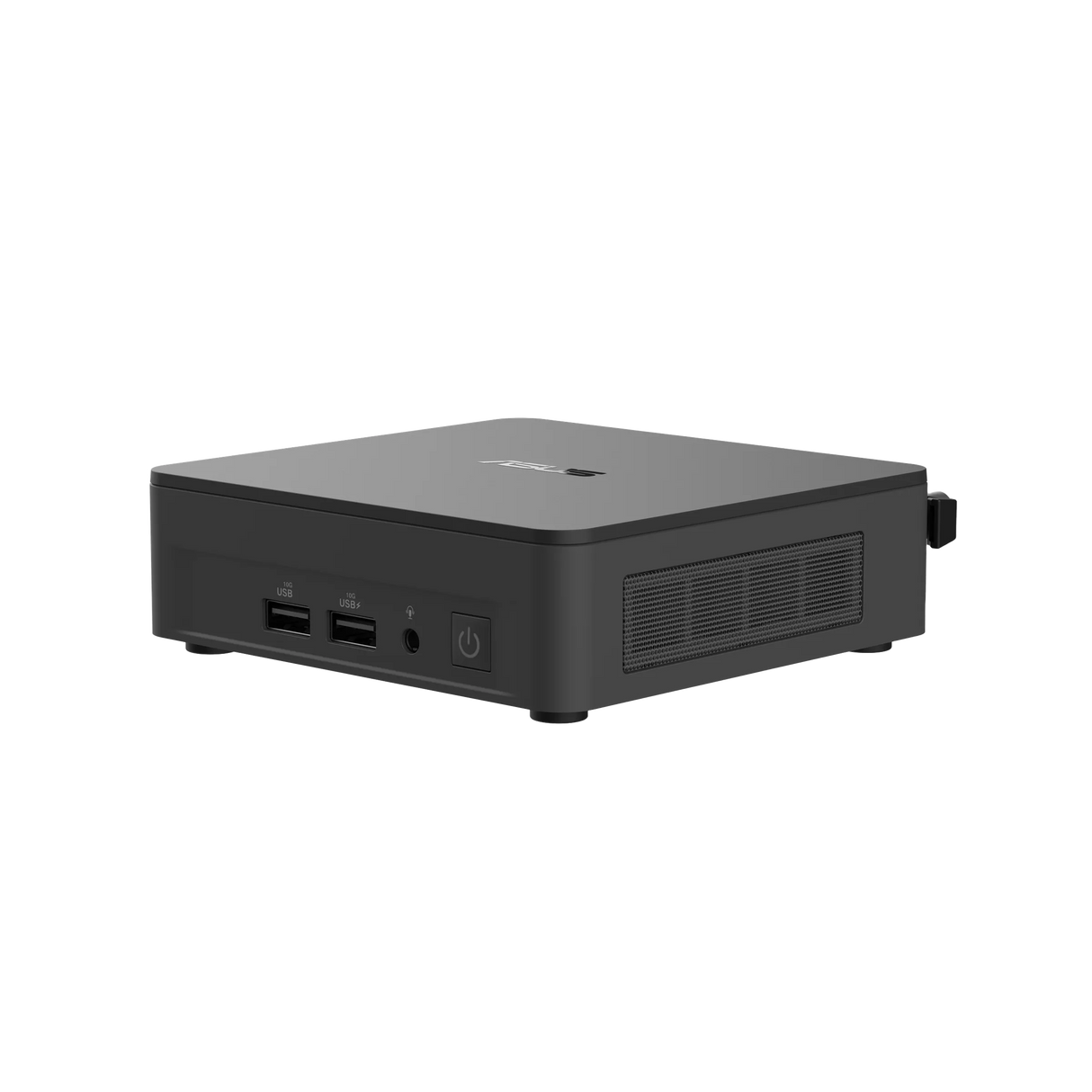

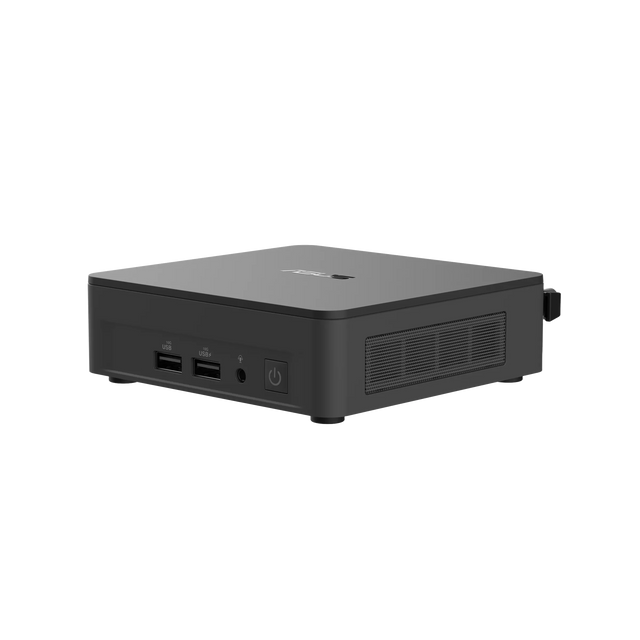

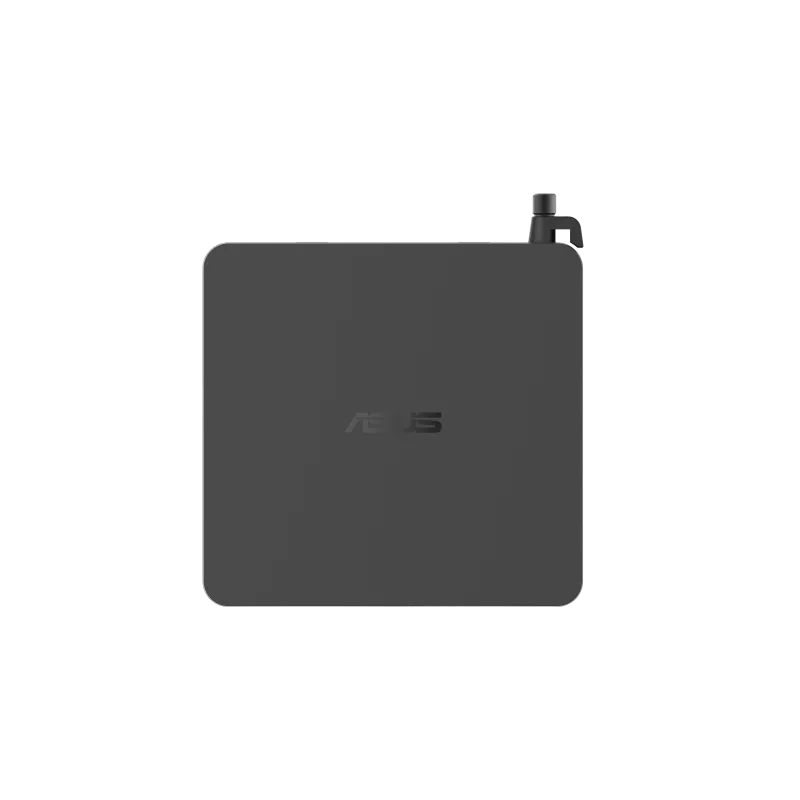

ASUS NUC 12 Pro

Model : ASUS NUC 12 Pro Board

Form Factor : Board

Operating System :
No preinstalled OS
​Support:
Windows 11
Windows 10 IoT Enterprise
RedHat Enterprise Linux 9.1
Ubuntu 22.04 LTSU
buntu 20.04 LTS

CPU : Intel® Core™ i3-1220P Processor, cTDP 15W

Chipset : Intergrated

Memory :
No memory included at shipment
Max Capacity:32GB DDR4-3200 SO-DIMM x 2

Storage :
No storage included at shipment
Support:
128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+
128GB~4TB 2.5" SATA HDD+
128GB~2TB 2.5" SATA SSD/HDD Port

Wireless Data Network : No Wireless Card Installed

LAN : Intel® Ethernet Controller I226-V/LM, 2.5G

Audio : Realtek ALC269

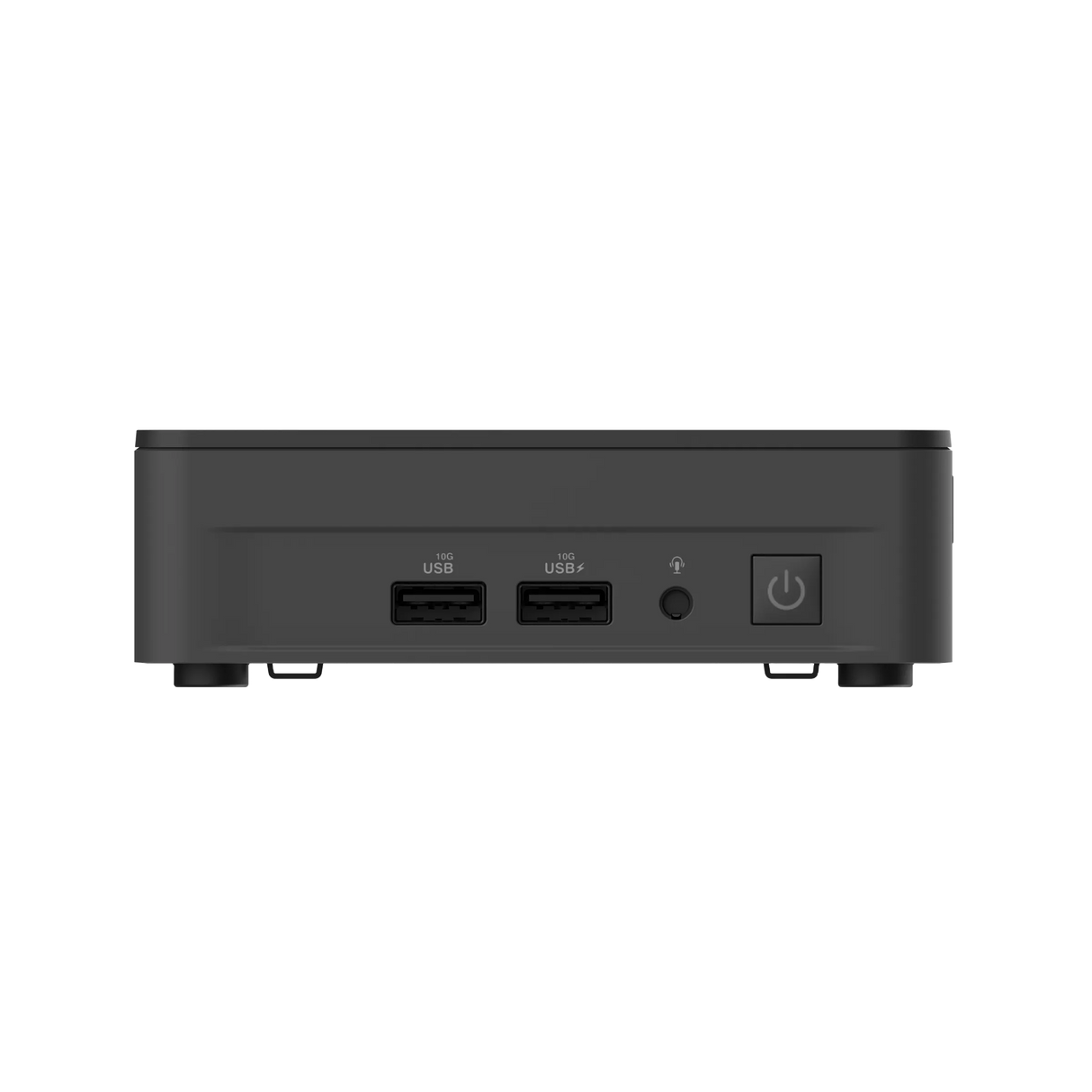

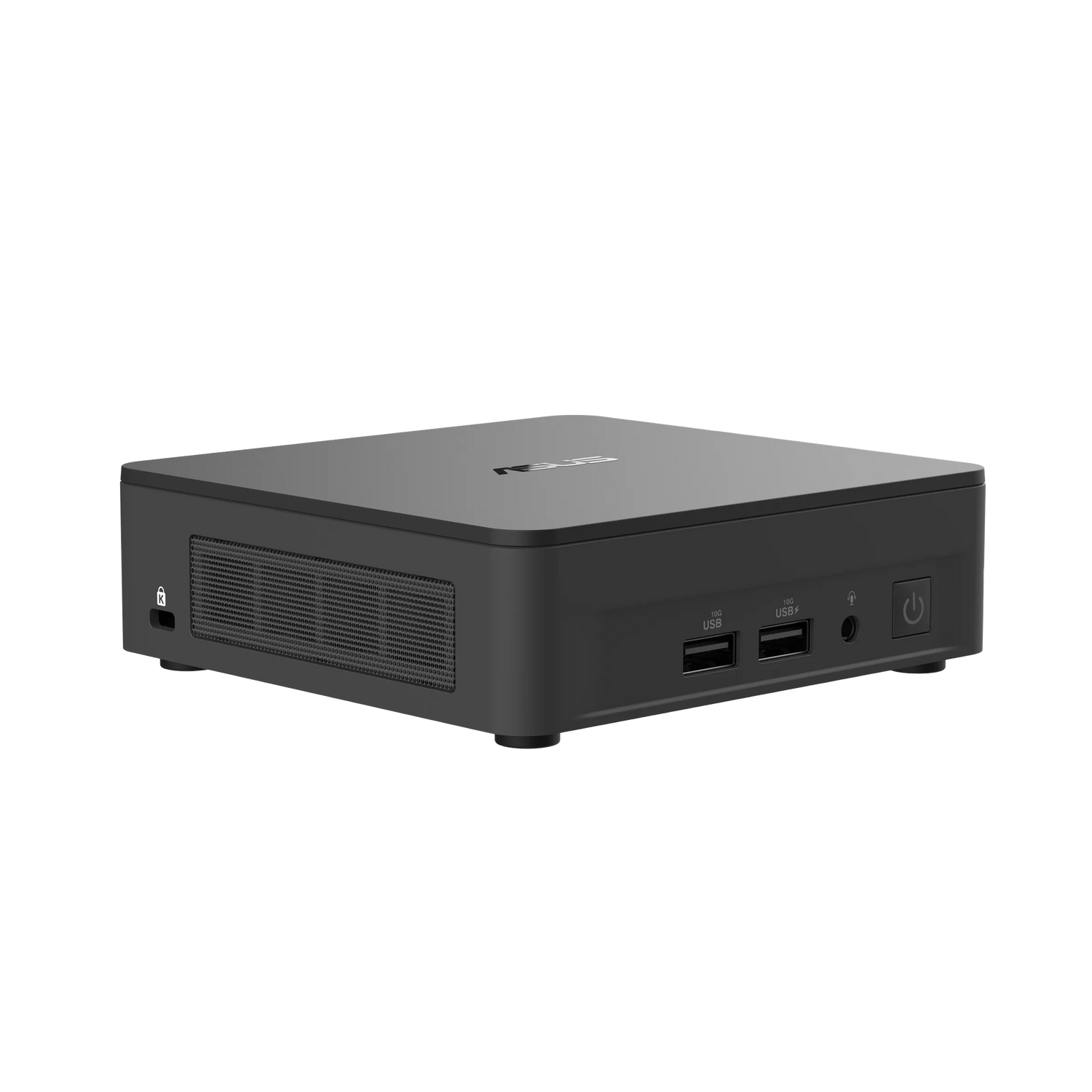

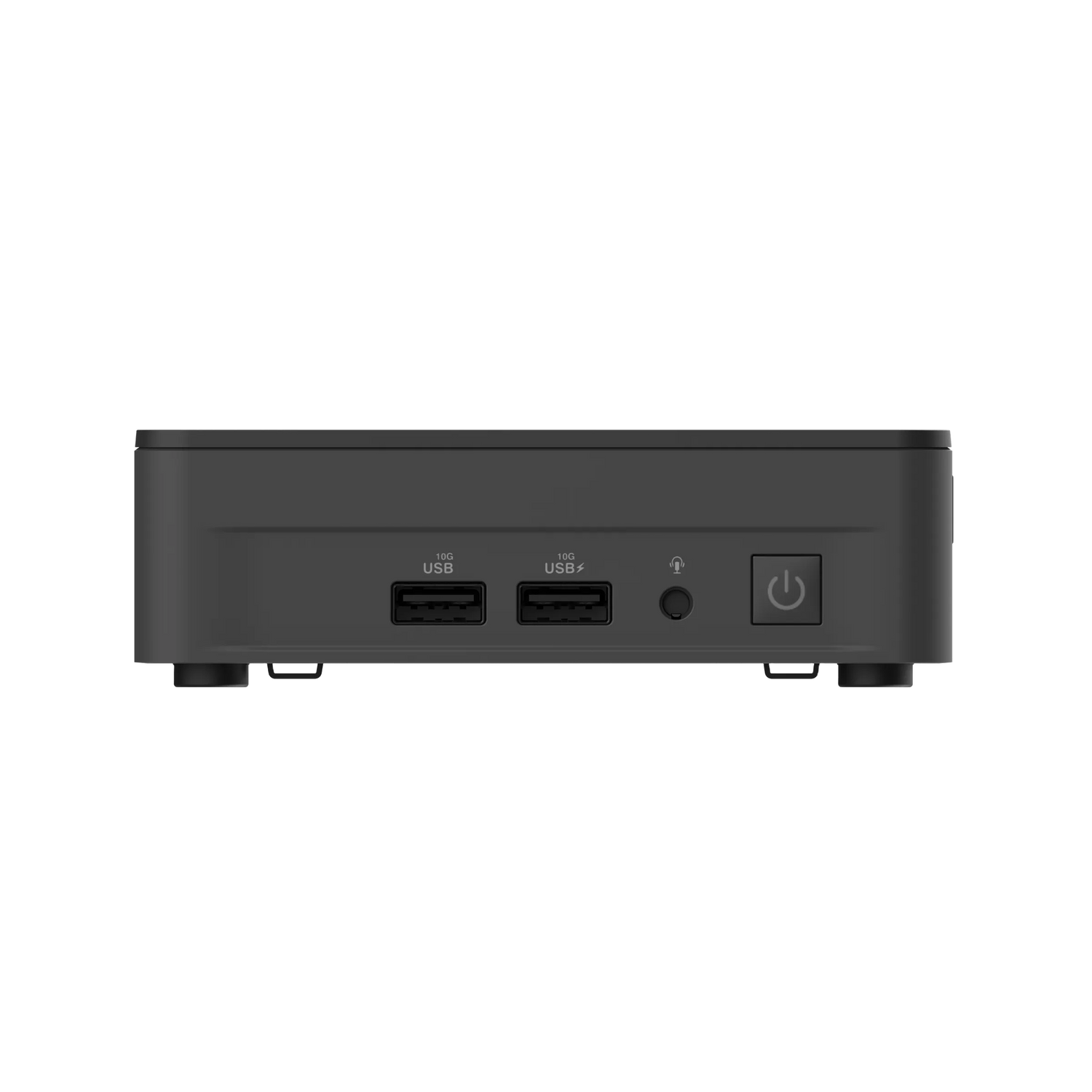

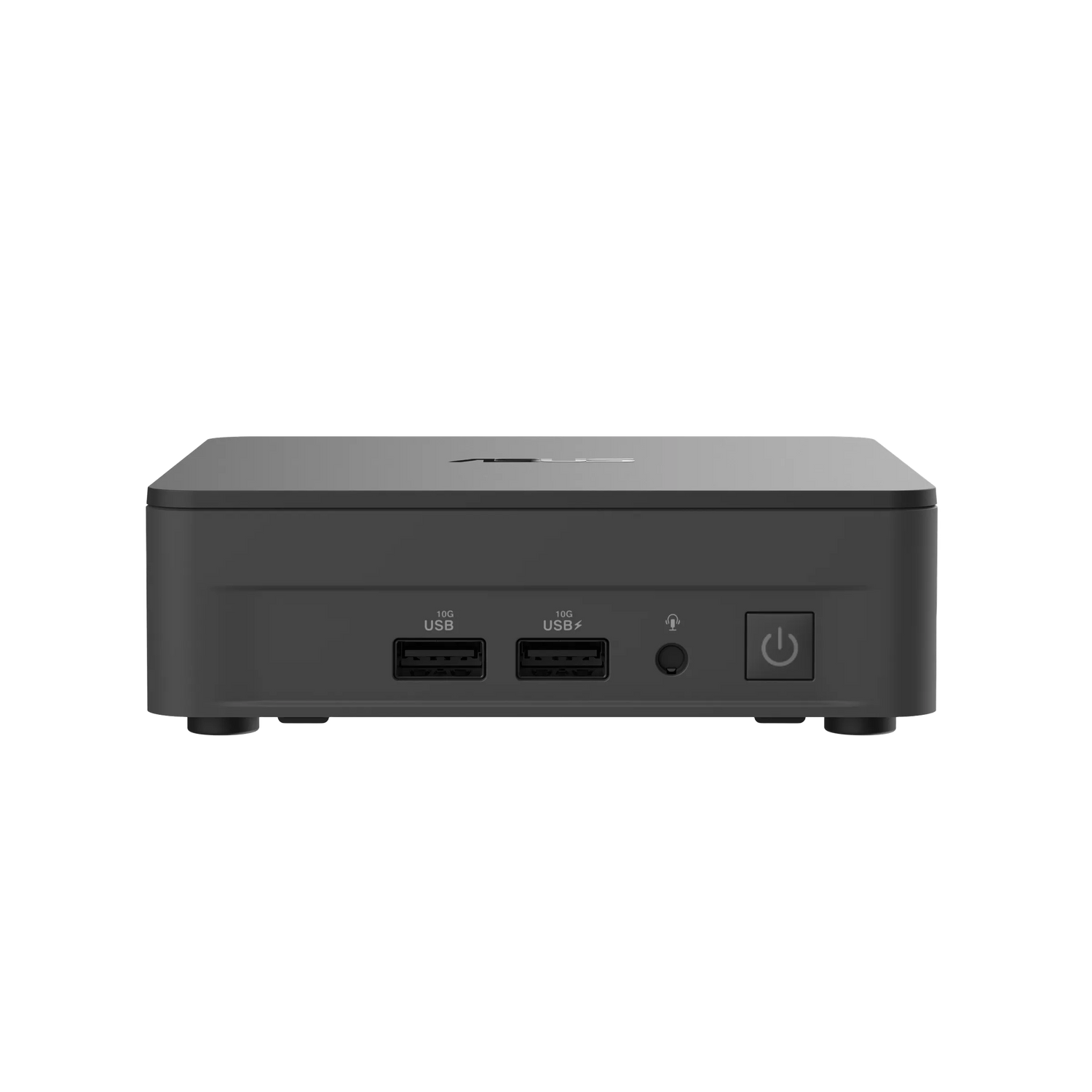

Front(Side) I/O Ports :
2 x USB 3.2 Gen2 Type-A
1 x 3.5mm Headset Jack

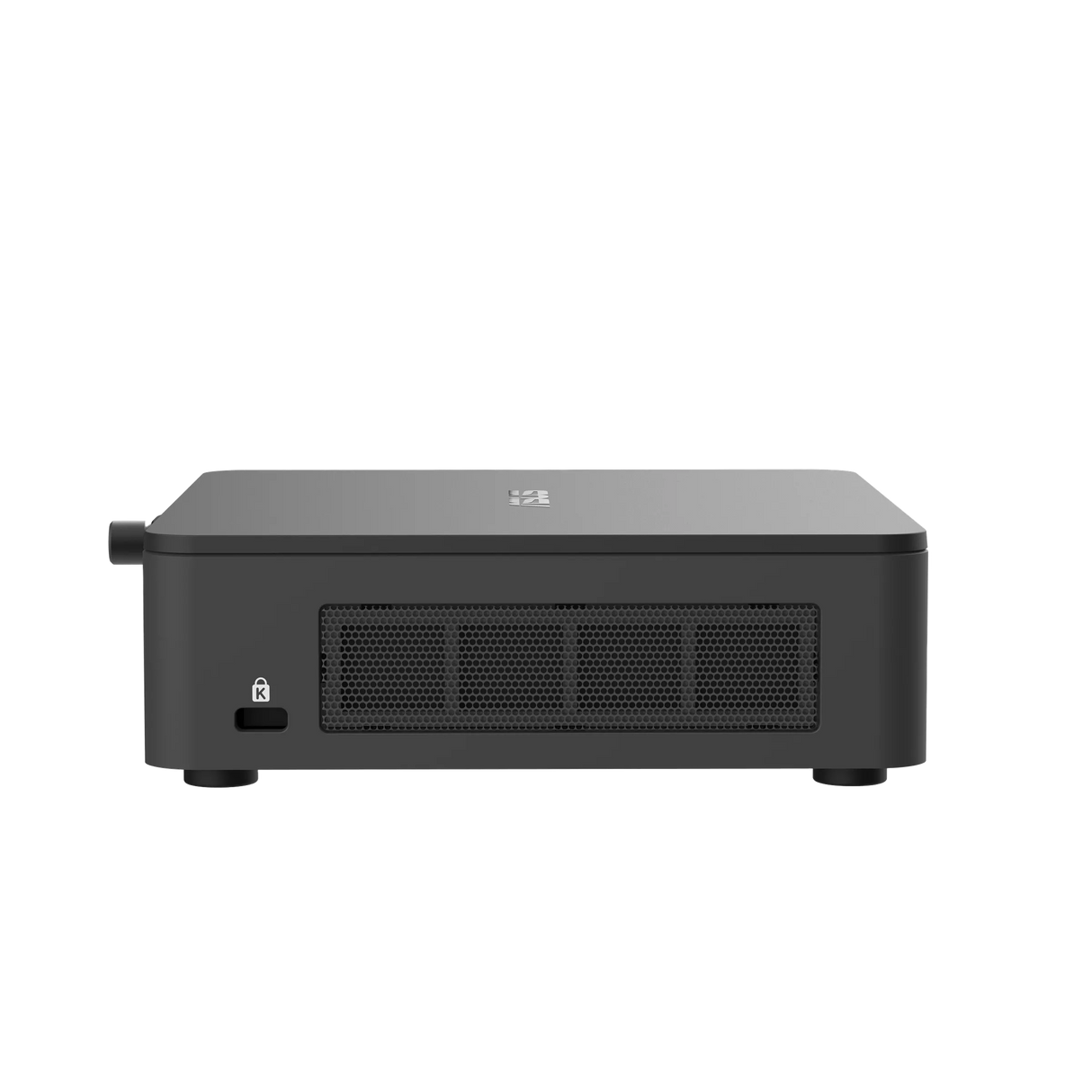

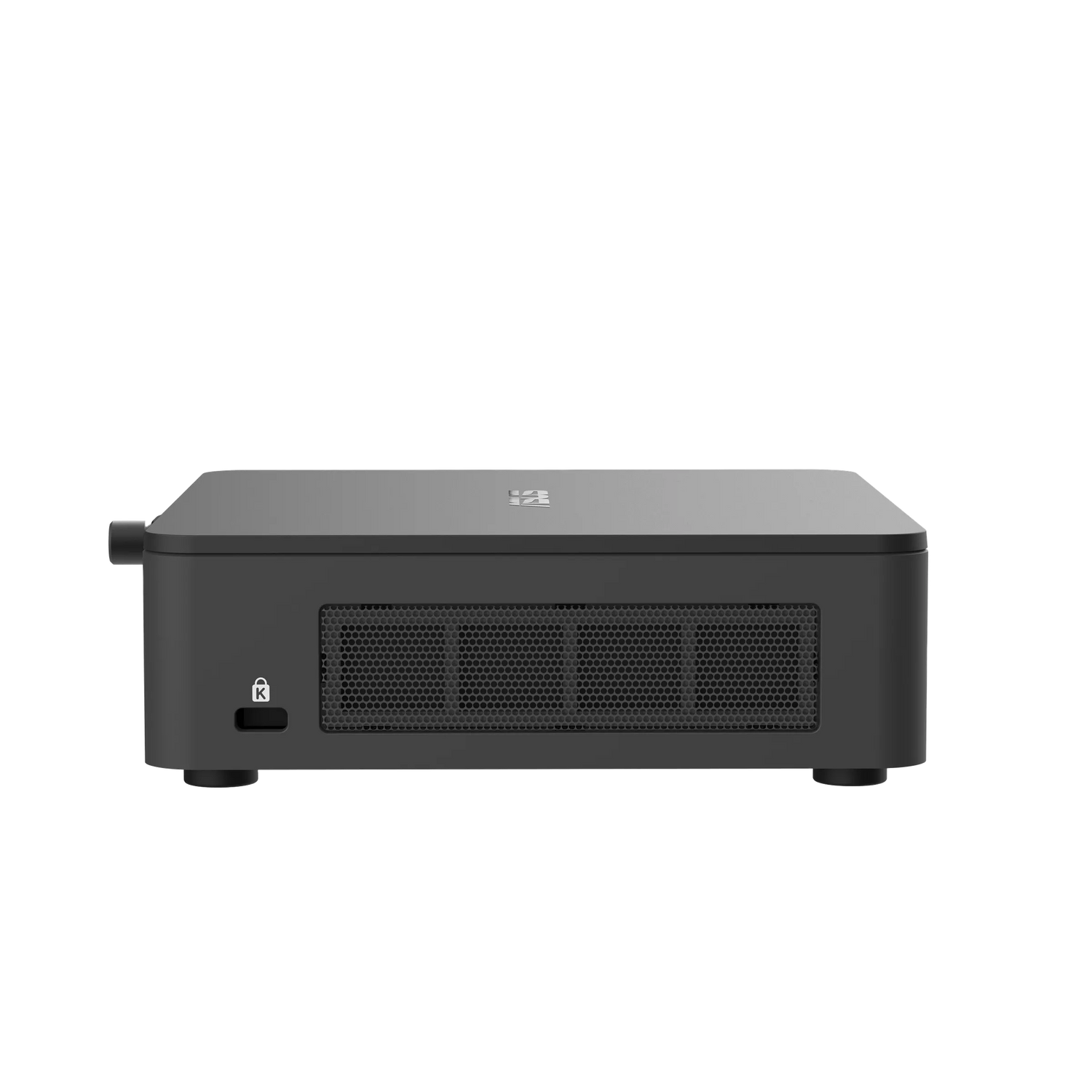

1 x Kensington Lock

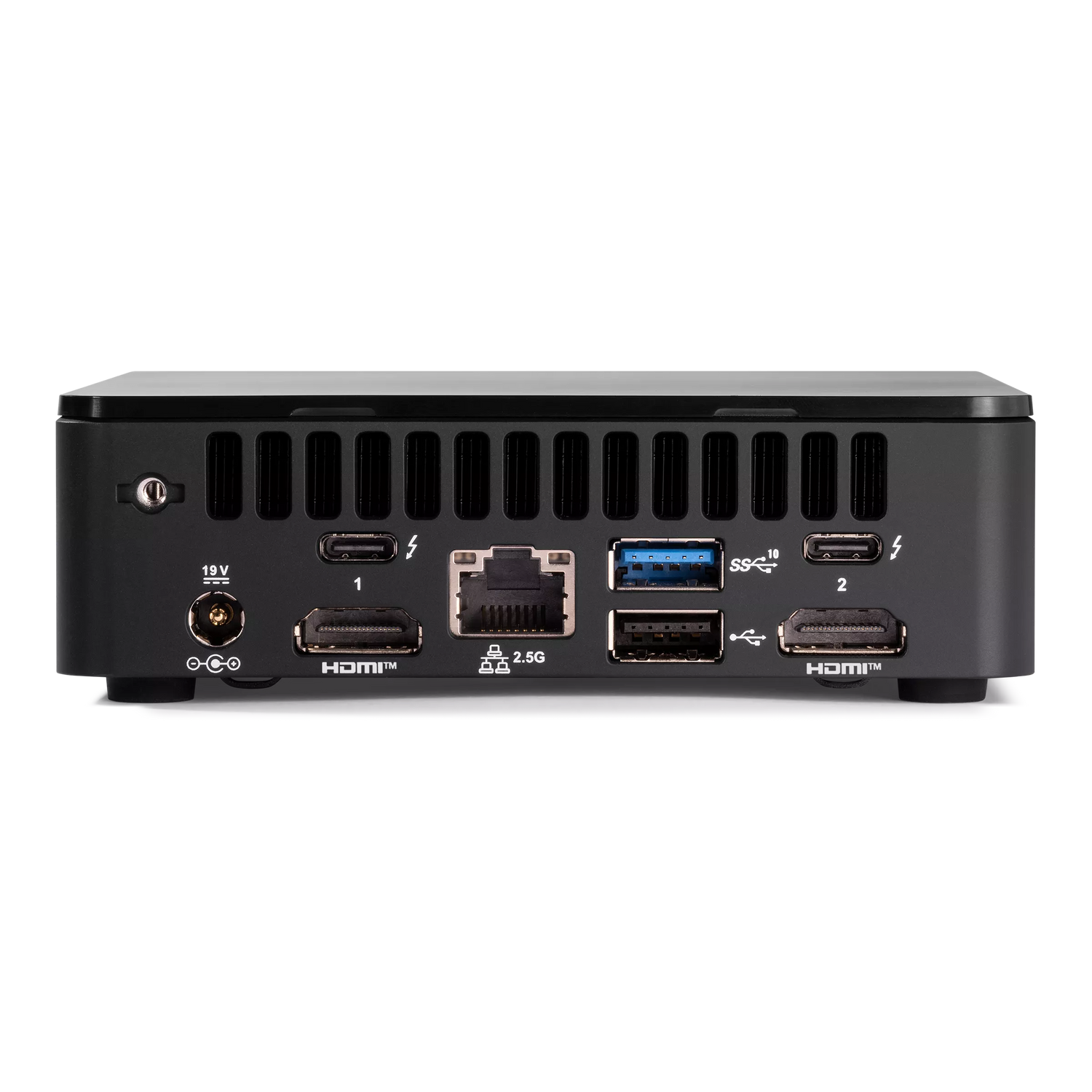

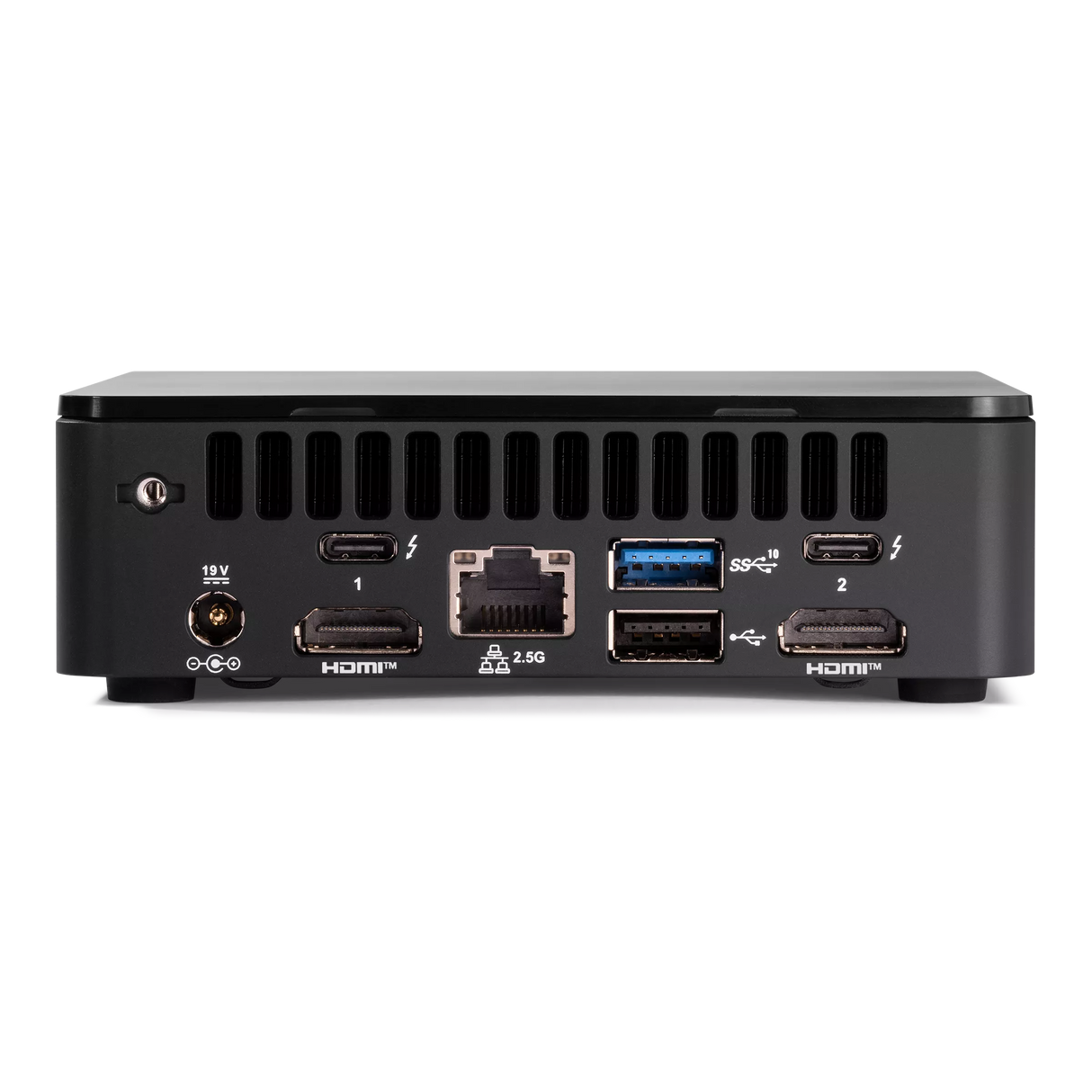

Back I/O Ports :
2 x Thunderbolt 4 Type-C w/ DisplayPort 1.4
1 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
2 x HDMI 2.1 (TMDS)
1 x RJ45 LAN
1 x DC-in

Dimensions (W x D x H) : 104.1mm x 101.6mm x 27mm

Weight : 225g

ID : Board

Accessories :
Warranty Card
Safety/Caution/Regulatory Insert

Generation
12

CPU
Core I3 1220P

Memory support
2 x SO-DIMM up to 16GB D4

M.2 slot
1 x M.2

SATA ports
1 x SATA

I/O ports
2 x HDMI

Audio
Y

LAN
2.5G

BT
Y

Wifi
Y
