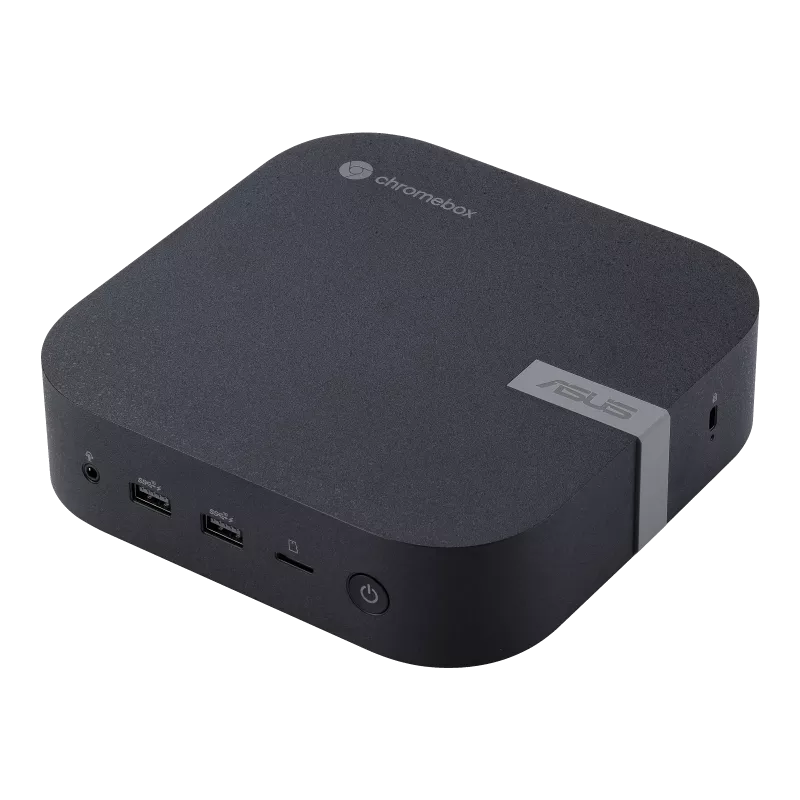

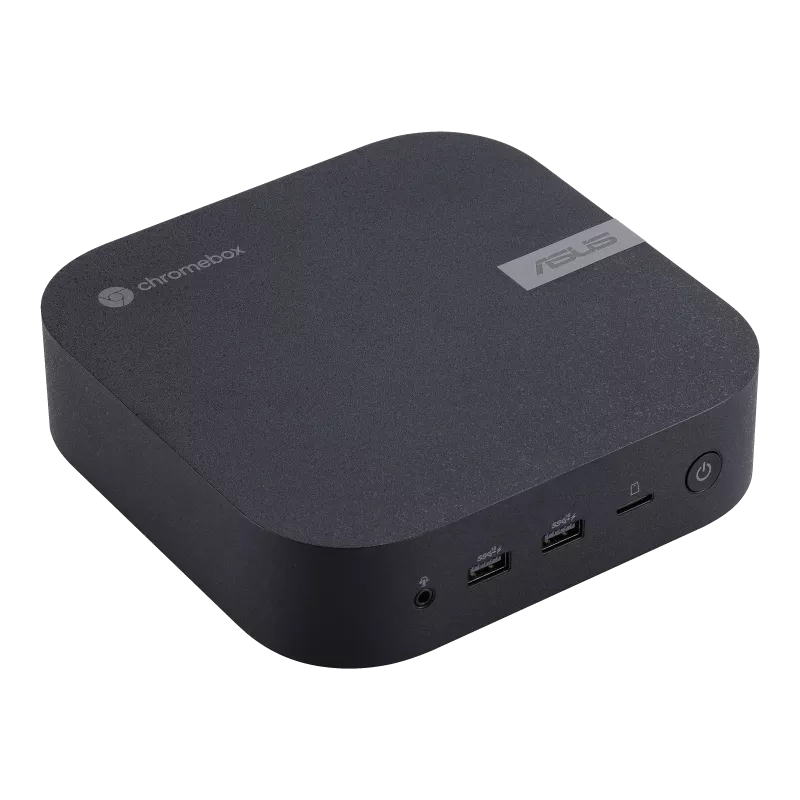

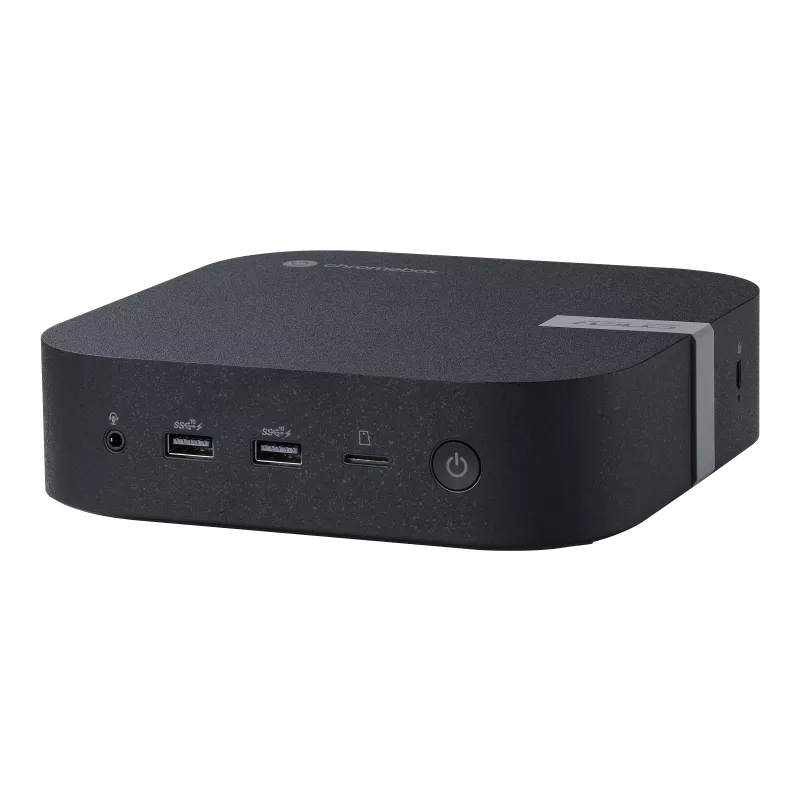

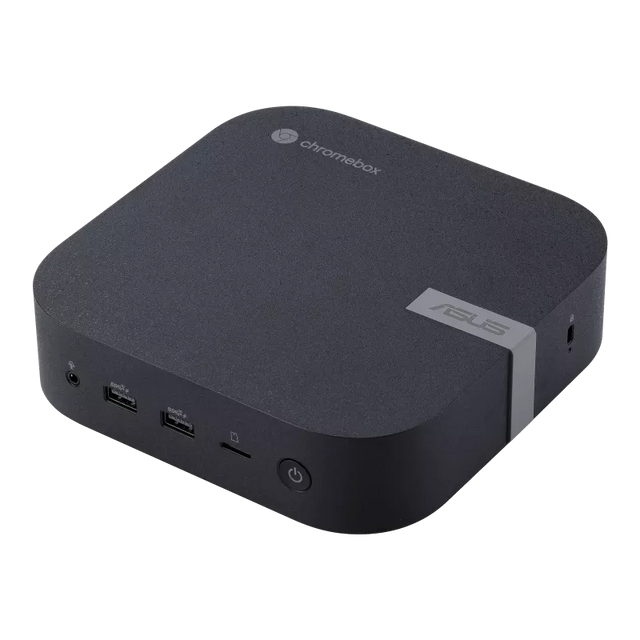

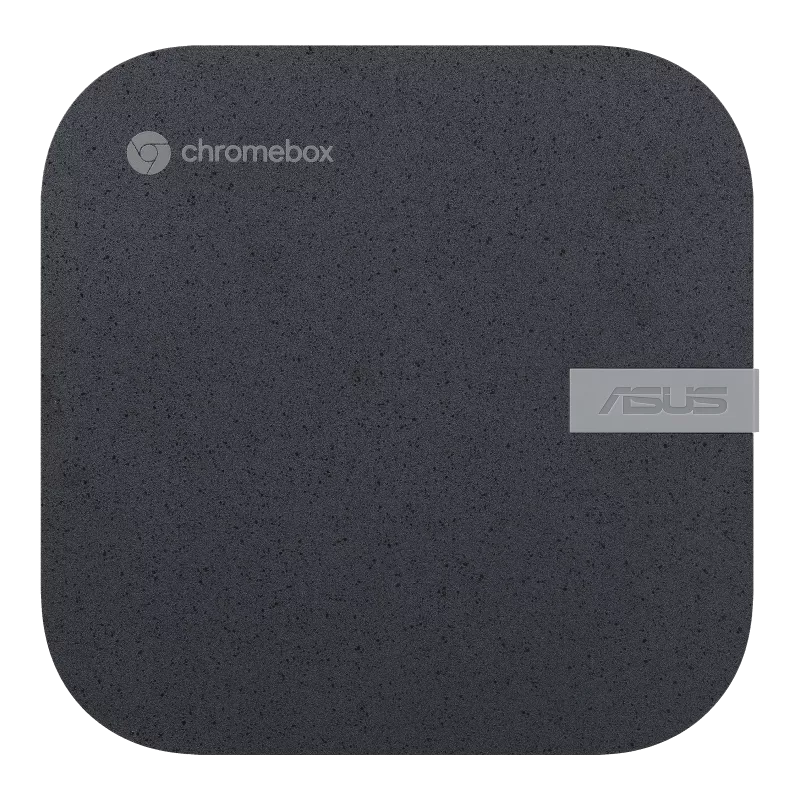

ASUS Chromebox 5

Model : ASUS Chromebox 5

Operating System : Chrome Enterprise

CPU : Intel Celeron 7305 Processor

Chipset : Integrated

Graphics :
Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor)
Integrated - Intel® UHD Graphics (i3 Processor)
Intel® UHD Graphics

Memory :
Max Capacity: 16GB x 2 (Core-I CPU) or 16GB x 1 (Celeron CPU)
*System requires dual-channel memory configuration for optimal performance
Included: 8GB DDR4-3200 SO-DIMM

Storage :
Support:
128GB~512GB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
128GB M.2 NVMe™ PCIe® 3.0 SSD

Wireless Data Network :
Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card

LAN : 10/100/1000/2500 Mbps, 2.5G LAN

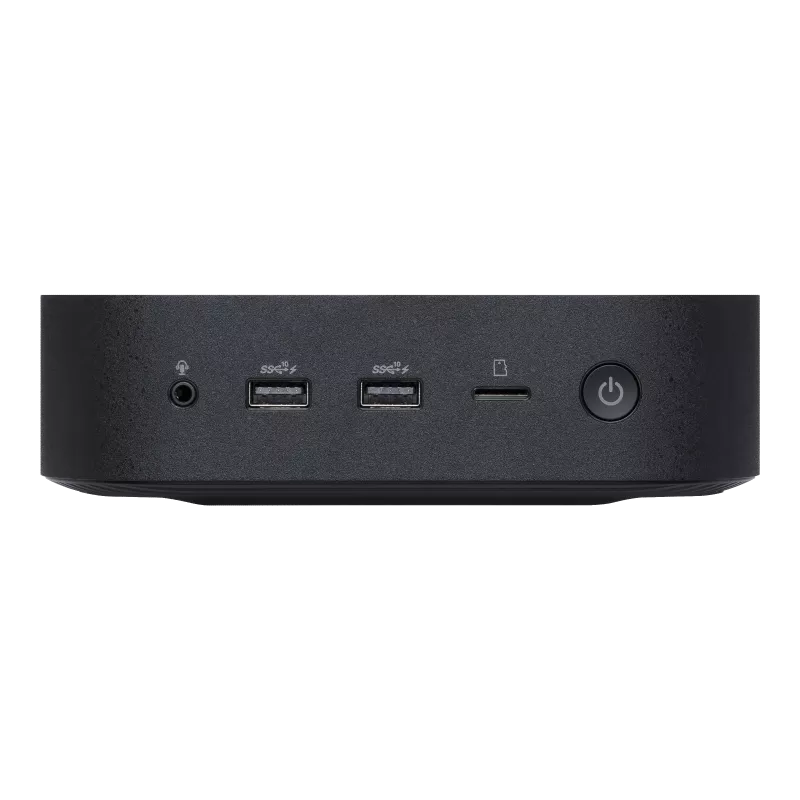

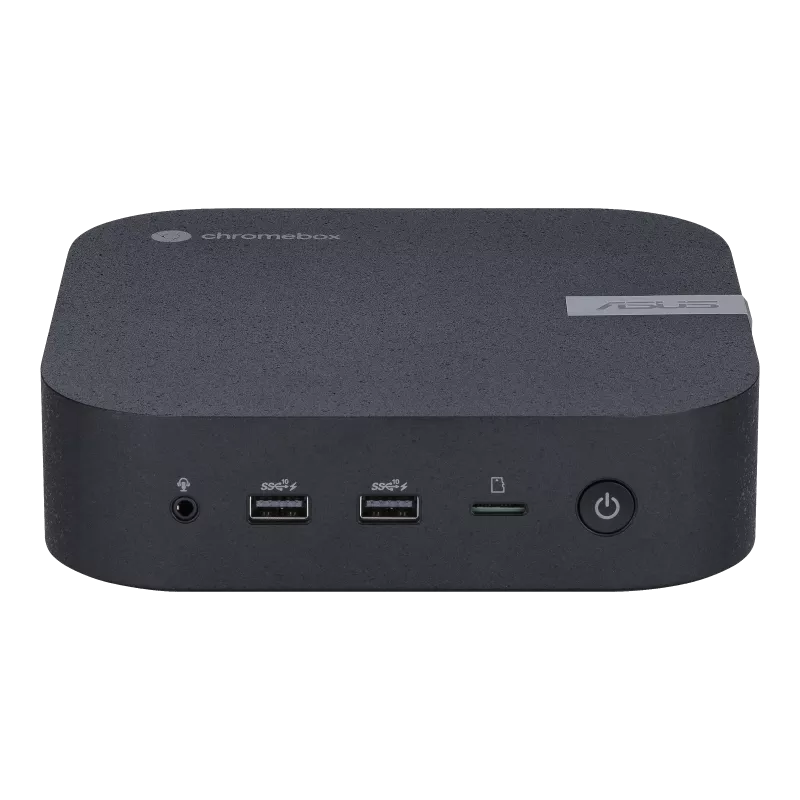

Front(Side) I/O Ports :
2 x USB 3.2 Gen2 Type-A (w/ quick charge)
1 x Audio Jack (Mic/Headphone Jack)
1 x Micro SD Card Reader1 x Kensington Lock(Side)

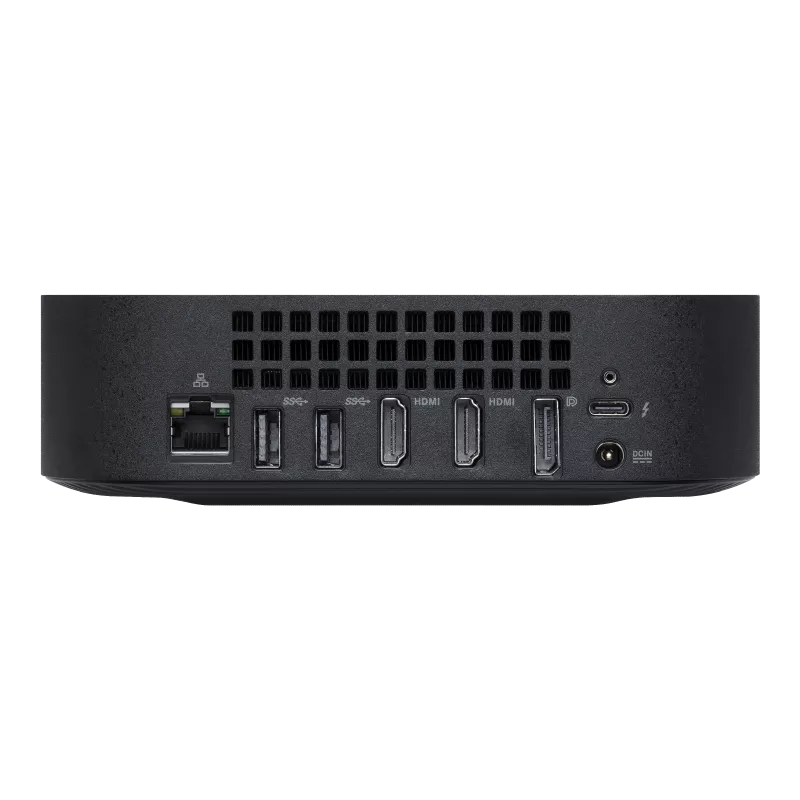

Back I/O Ports :
1 x Thunderbolt™ 4
2 x USB 3.2 Gen2 Type-A
1 x DisplayPort 1.4
1 x RJ45 LAN
1 x DC-in
1 x Recovery Button

Power Supply : 19Vdc, 3.42A, 65W Power Adapter

Dimensions (W x D x H) :166.5 x 165.8 x 45.9 mm

Weight : 0.8KG

Color : Black

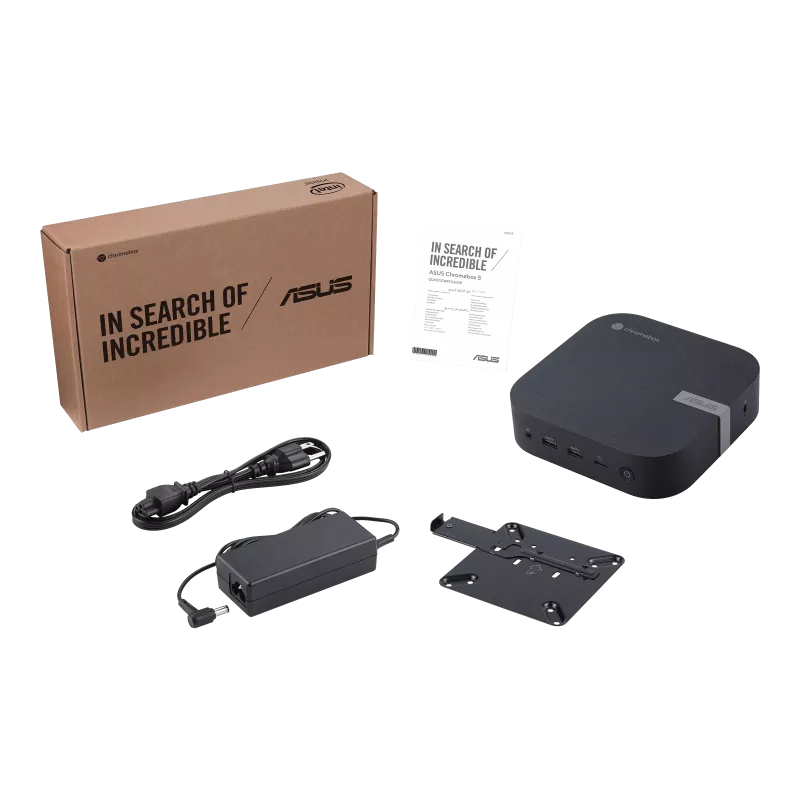

Accessories :
AC Adapter
Power Cord
User Manual
Warranty Card
Keyboard & Mouse (optional)
Screw Pack (optional)
VESA Mount (optional)

Certificates :
BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI

Vendor Part Code
CN67

Generation
12

CPU
Celeron

RAM
8GB

Storage
128GB

I/O ports
1 x HDMI

Audio
N

LAN
Y

BT
Y

WiFi
Y
