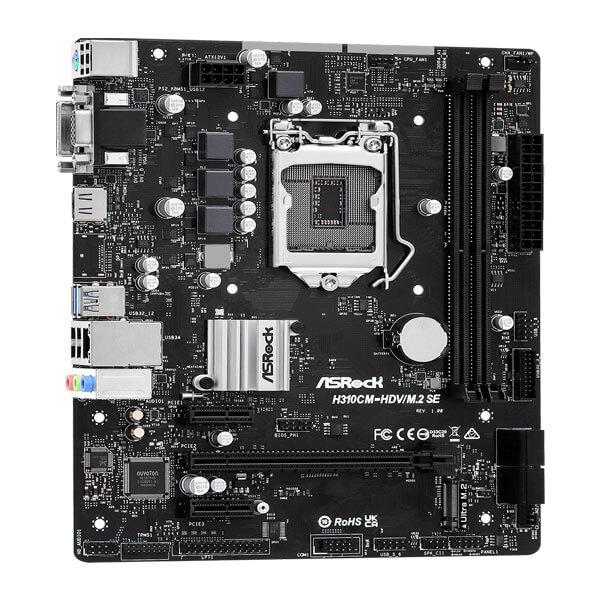

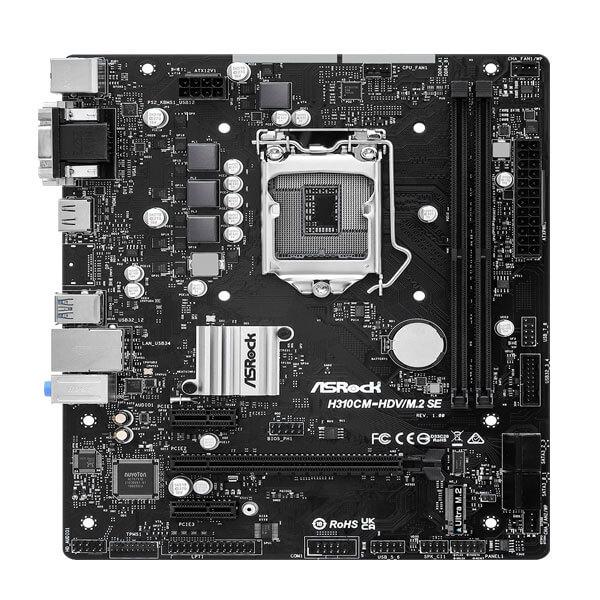

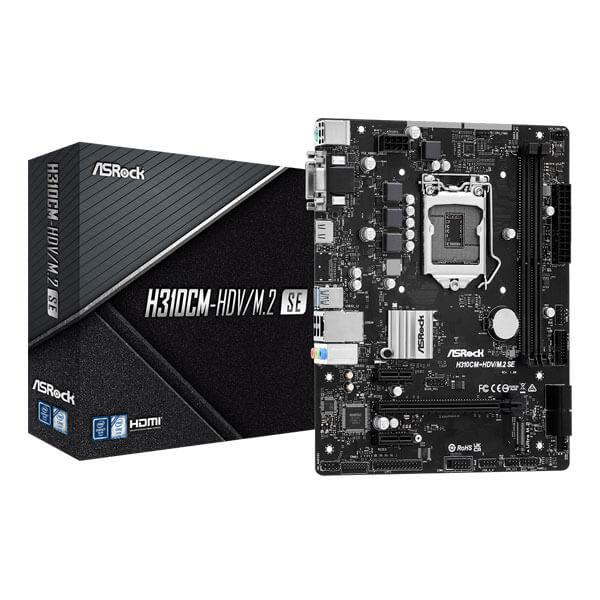

ASRock H310CM-HDV/M.2 SE Motherboard

By ASRock
₹4,950
Tax included Shipping calculated at checkout.

Specifications

ASRock H310CM-HDV/M.2 SE Motherboard supports 9th, 8th, 7th and 6th Gen Intel® Core Processors (Socket 1151). The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Features:

  • Supports 9th, 8th, 7th and 6th Gen Intel® Core™ Processors (Socket 1151)
  • 2 x DDR4 DIMMs
  • Intel® Q270 Chipset
  • 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC662 5.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.2 Gen1 (2 Front, 2 Rear),
    8 USB 2.0 (4 Front, 4 Rear)
  • Intel® Gigabit LAN
  • Supports ASRock Auto Driver Installer
    * If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

Specification:

Model H310CM-HDV/M.2 SE
Unique Feature ASRock Super Alloy
  • Sapphire Black PCB
  • High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
  • Supports 9th, 8th, 7th and 6th Gen Intel® Core™ Processors (Socket 1151)
  • Supports CPU up to 95W
  • 4 Power Phase design
  • Supports Intel® Turbo Boost 2.0 Technology
Chipset Intel® Q270
Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports ECC UDIMM memory modules (operate in non-ECC mode) (for 7th and 6th Gen Intel® CPU only)
  • Max. capacity of system memory: 32GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
  • 15? Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Graphics
  • Three graphics output options: D-Sub, DVI-D and HDMI*
  • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  • Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Audio
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports Surge Protection
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Giga PHY Intel® I219V
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Slots
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
  • 2 x PCI Express 3.0 x1 Slots
Storage
  • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector
  • 1 x Print Port Header
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

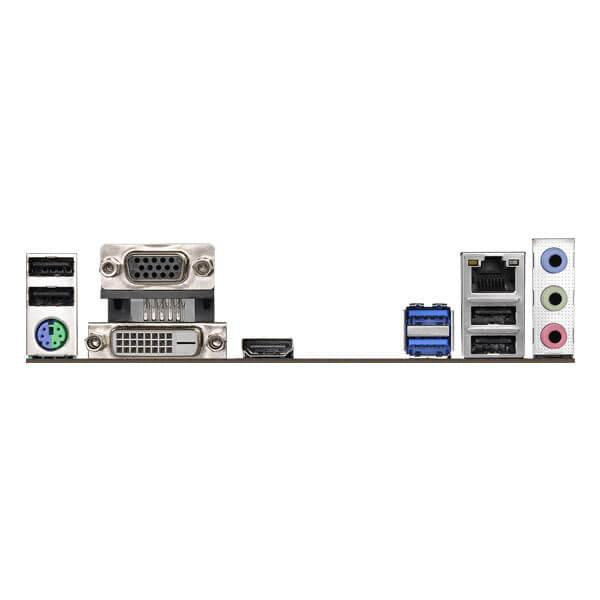

Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 4 x USB 2.0 Ports (Supports ESD Protection)
  • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
  • ASRock A-Tuning
  • ASRock XFast LAN
UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Internet Flash
Accessories
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
Form Factor
  • Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
  • Solid Capacitor design
OS
  • Microsoft® Windows® 11 64-bit / 10 64-bit (For 9th, 8th and 7th Gen Intel® CPU)
  • Microsoft® Windows® 11 64-bit / 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.

Additional Information

SKU:

Model Number: H310CM-HDV-M-2-SE
