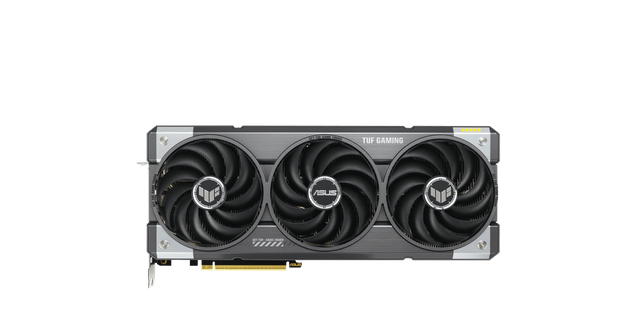

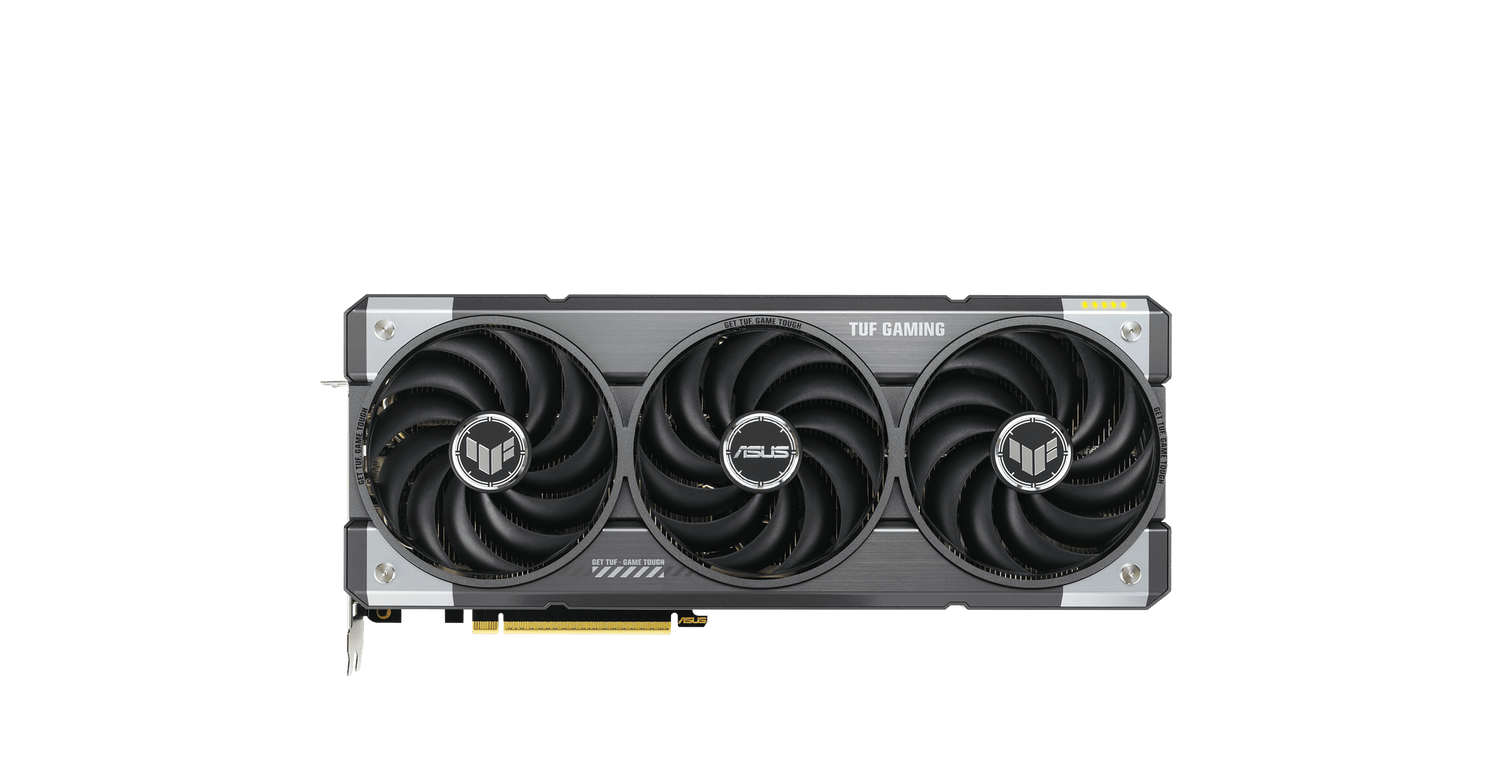

ASUS TUF Gaming Radeon™ RX 9070 OC Edition 16GB GDDR6

Model : TUF-RX9070-O16G-GAMING

Graphic Engine : AMD Radeon™ RX 9070

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 16GB GDDR6

Engine Clock :
OC mode(GPU Tweak III): up to 2670 MHz (Boost Clock)/up to 2190 MHz (Game Clock)
Default mode: up to 2650 MHz (Boost Clock)/up to 2170MHz (Game Clock)

Stream Processors : 3584

Memory Speed : 20 Gbps​

Memory Interface : 256-bit

Resolution : Digital Max Resolution 7680 x 4320

Interface :
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)

Maximum Display Support : 4

NVlink/ Crossfire Support : No

Accessories :
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Fridge Magnet
1 x Thank you card
1 x Speedsetup Manual

Software :
ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions : 330 x 140 x 62.5 mm13 x 5.5 x 2.5 inch

Recommended PSU : 750W

Power Connectors : 2 x 8-pin

Slot : 3.125 Slot

AURA SYNC : RGB

Chip
RX9070

Engine CLK (MHz)
3584

Memory Size
16GB DDR6

Memory Interface
256-bit

Fan
3

Power
750W

Display port
3

Slot
3.125
